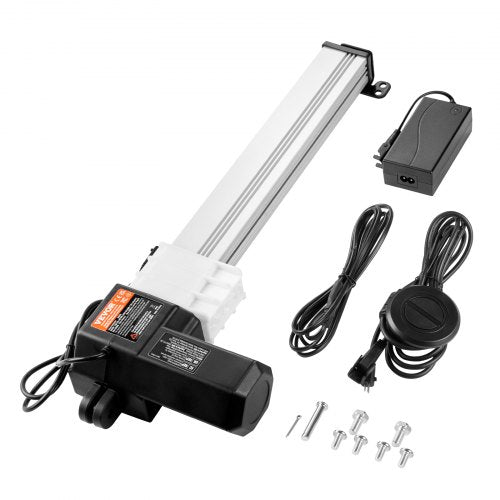

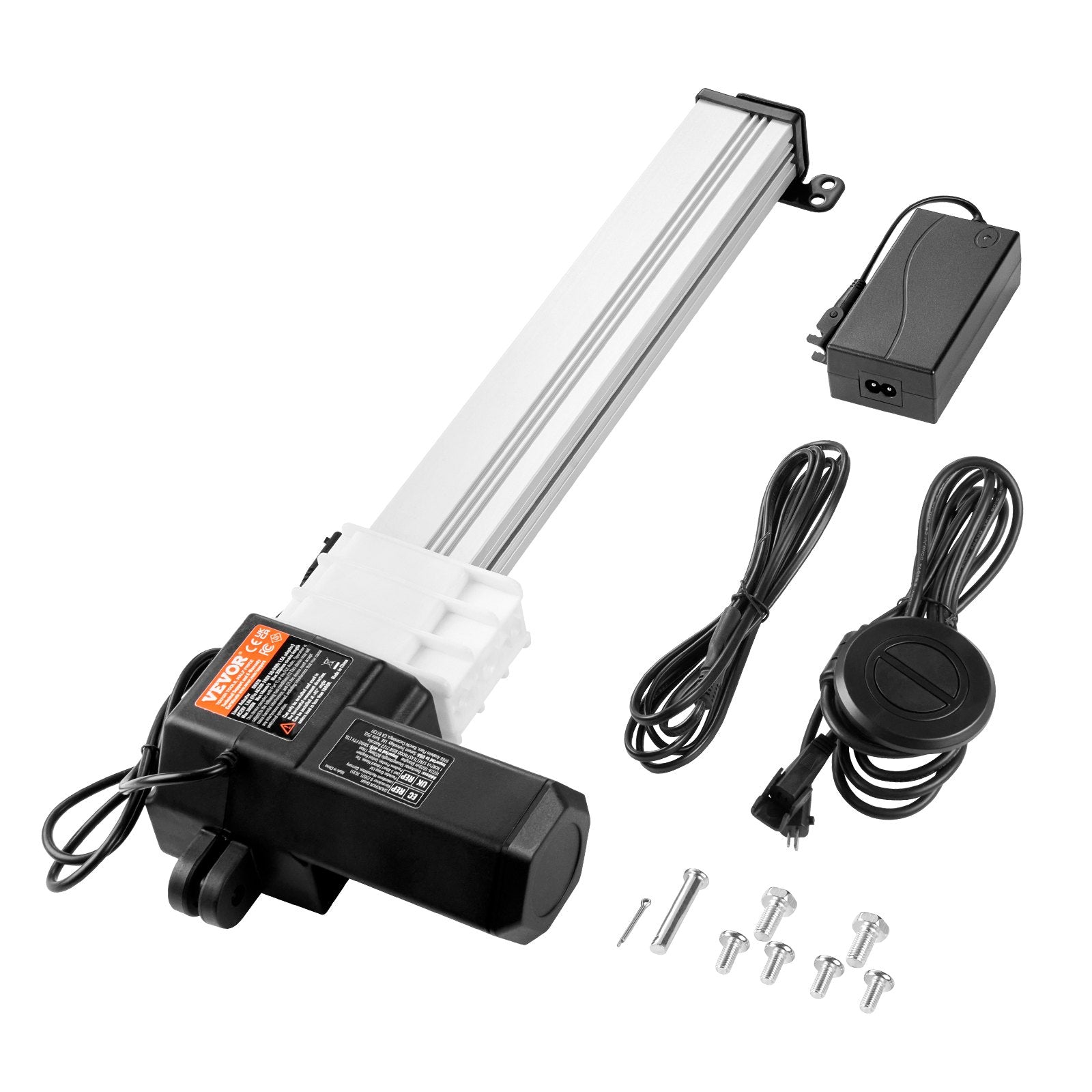

Complete Electric Actuator Kit: VEVOR linear actuator kit includes necessary components for easy assembly. 220lbs/1000N robust torque output ensure stable thrust for medium-duty tasks like lifting platforms and motorized doors and windows, versatile for both home and industrial use.
Reliable Torque Output: 220lbs robust torque output ensure stable thrust for medium-duty tasks like lifting platforms and motorized doors and windows. Versatile for both home and industrial use, it delivers exceptional performance.
Versatility Unleashed: Get ready for a quiet revolution! VEVOR's linear motion actuator, with a noise level below 50db, are your go-to for furniture adjustment, automation systems, mechanical equipment, transportation and more. Enjoy seamless functionality wherever you need it!
IP44 Protection Rating: Featuring an IP44 protection rating, VEVOR motion actuator kit excels in environments with dust, solid particles, and light-splashing water. Count on it to withstand dust and moisture in general industrial and household applications. (Caution: Water should not penetrate the interior of the motor)
Key Specifications: Stroke Length: 13 inch (330mm); Travel Speed: 0.55 in/s (14mm/s); Input Voltage: AC100-240V; Duty Cycle: 10%. Efficiency is at its highest when the actuation force is approximately 75% of its maximum value.

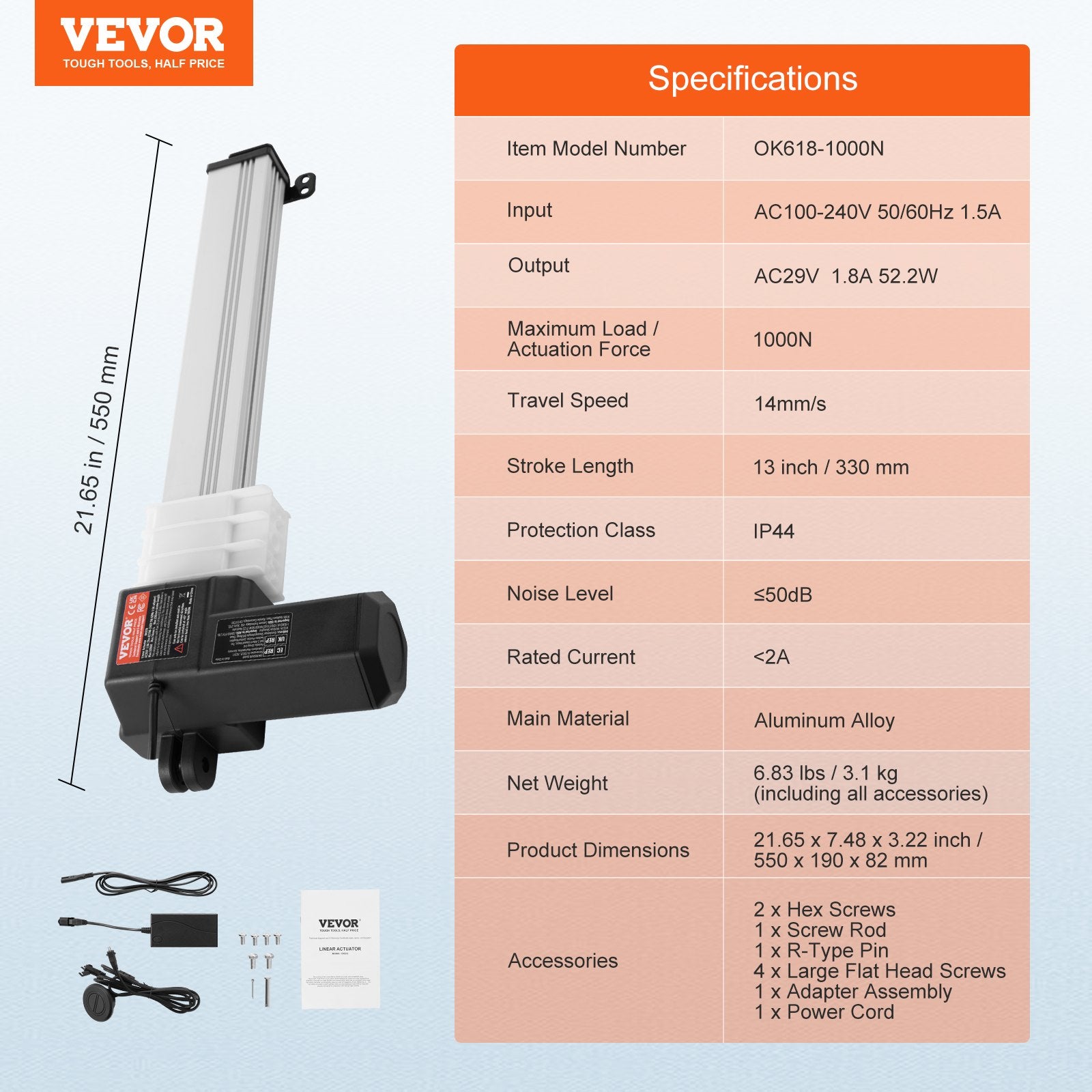

Product Specification
Protection Class: IP44
Noise Level: ≤50dB
Input: AC100-240V 50/60Hz 1.5A
Maximum Load/Actuation Force: 1000N
Item Model Number: OK618
Travel Speed: 0.55inch/s / 14mm/s

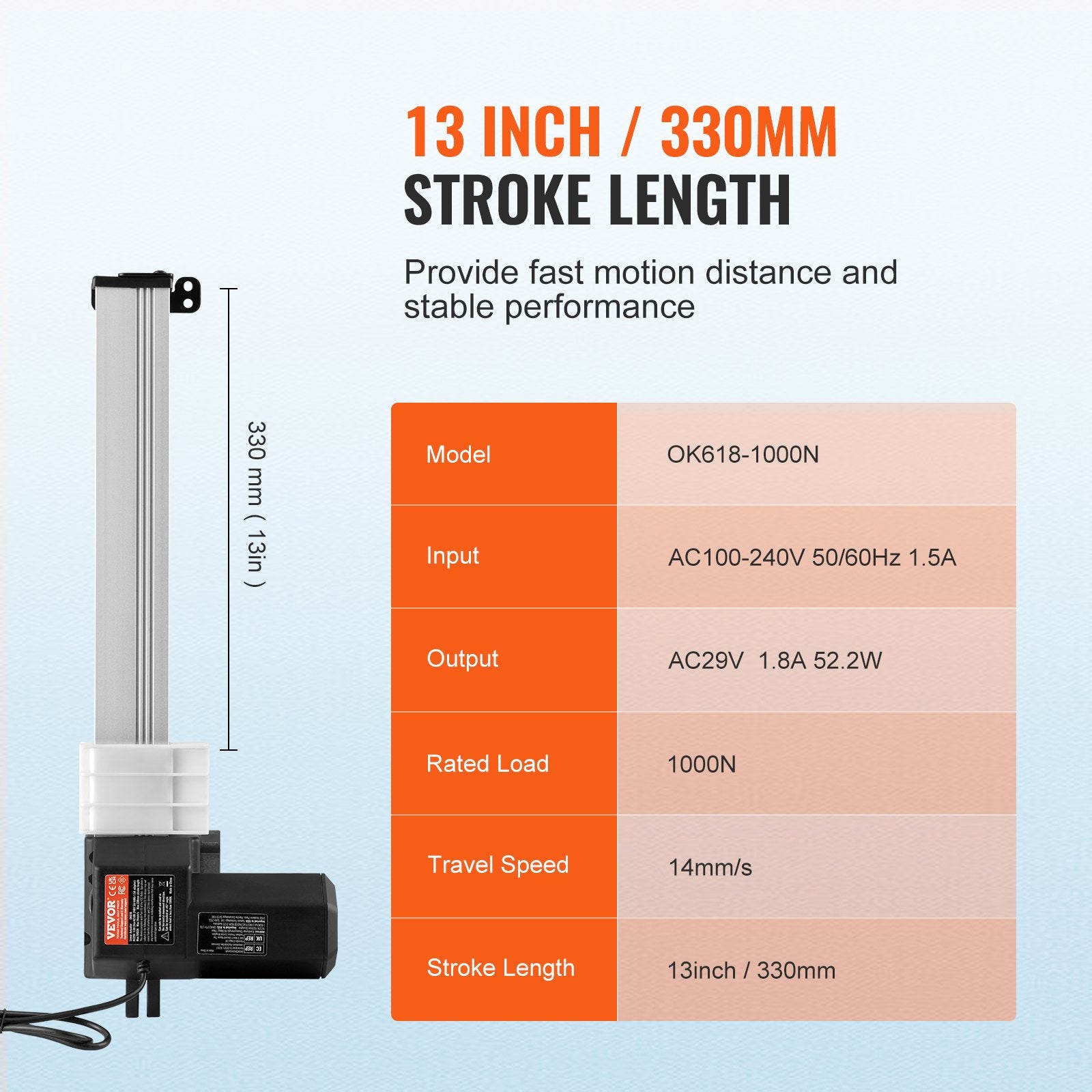

Stroke Length: 13 inch / 330 mm
Product Dimensions: 21.65 x 7.48 x 3.22 inch / 550 x 190 x 82 mm
Net Weight: 6.83 lbs / 3.1 kg (including all accessories)
