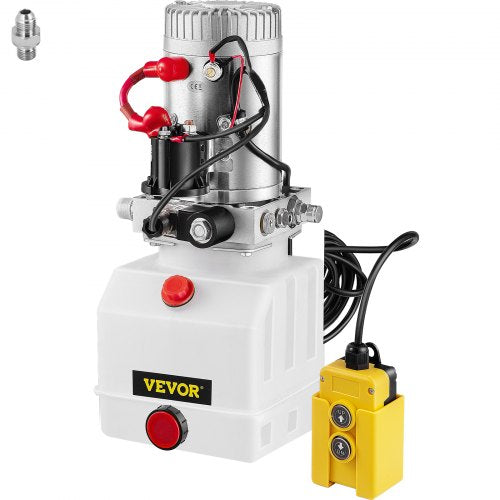

3.8 L Single Acting Hydraulic Pump Dump Trailer Lifting Remote Crane

3.8 L Single Acting Hydraulic Pump Dump Trailer Lifting Remote Crane

2 596 SEK
2 596 SEK
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 4-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a single-acting pump for power up and gravity down.

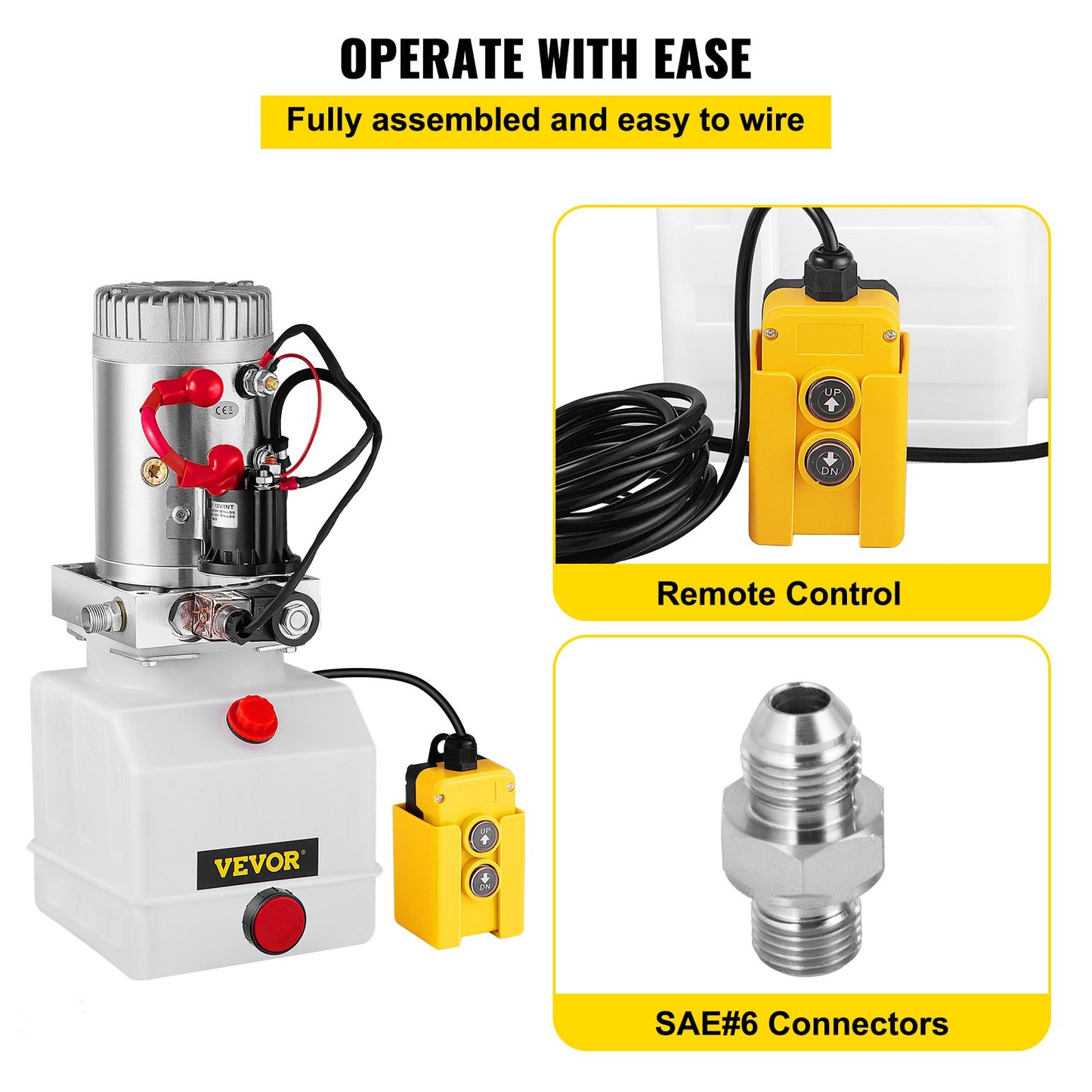

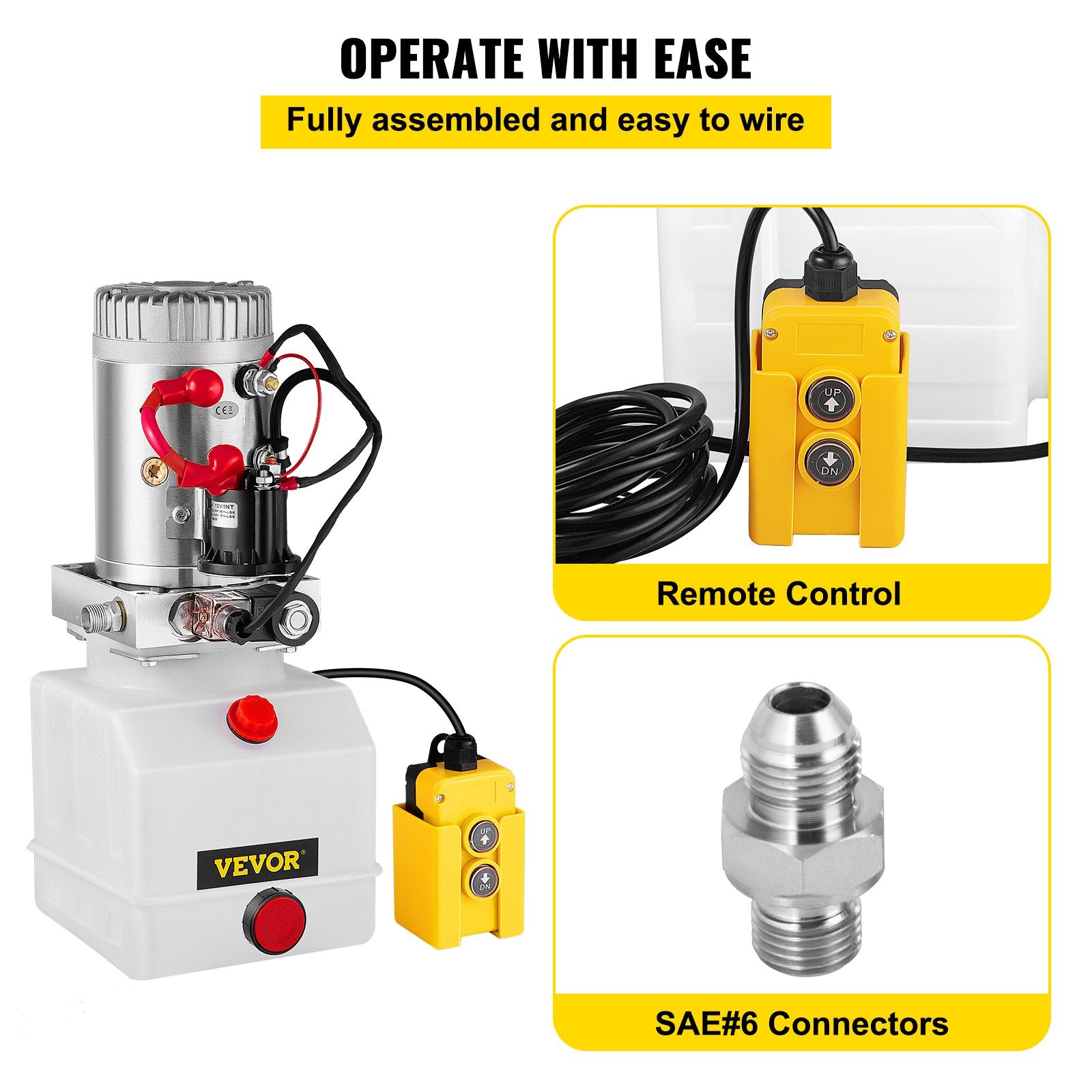

  • Easy to Use: This 12V hydraulic power unit has been fully assembled. The wiring is simple and comes with operating instructions. We offer you one 15ft remote for long-distance control and one additional SAE#6 connector for replacement.

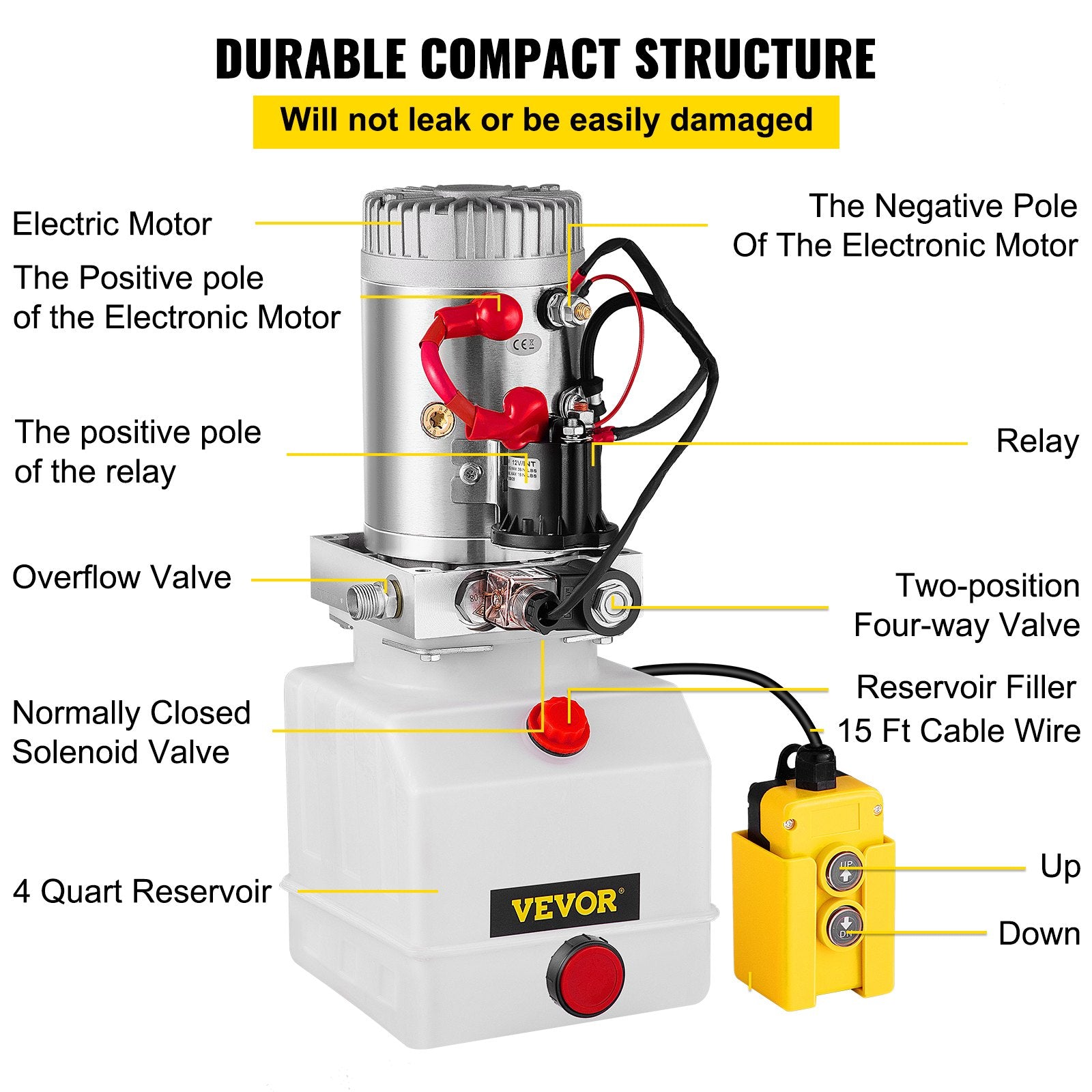

  • Reliable Quality: The dump trailer pump is made of sturdy plastic; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with a relief valve, it avoids overpressure, safer and reliable.

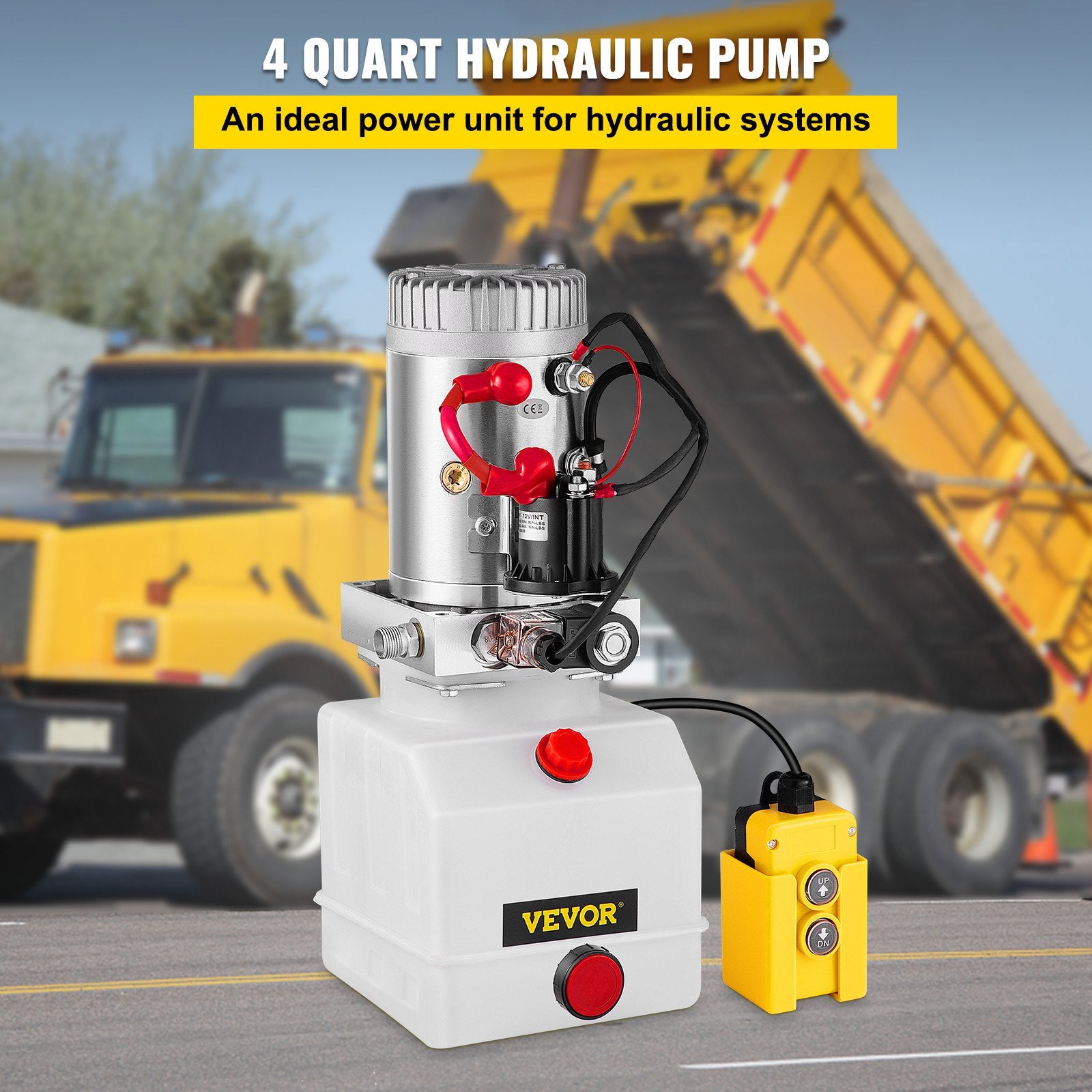

  • Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.

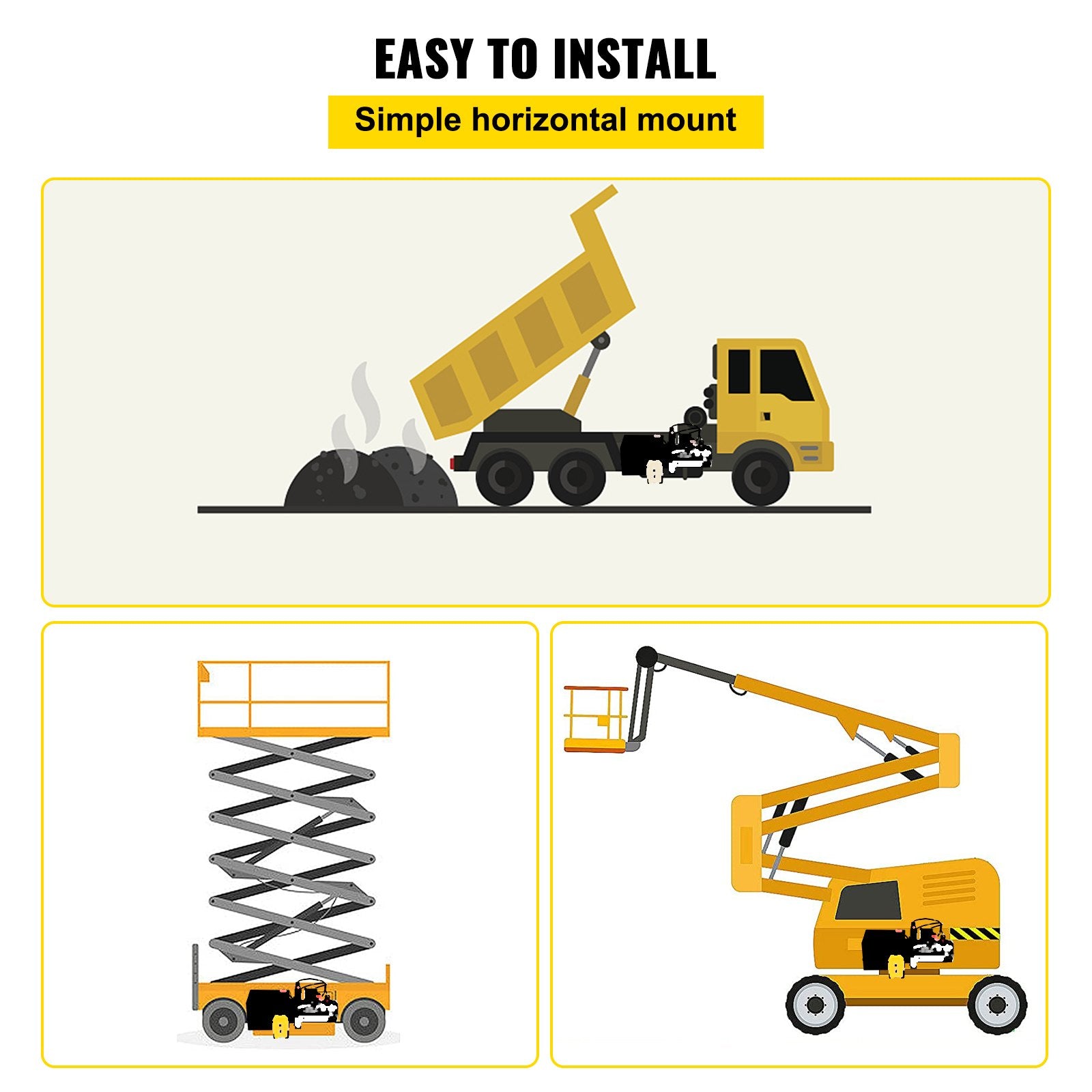

  • Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.

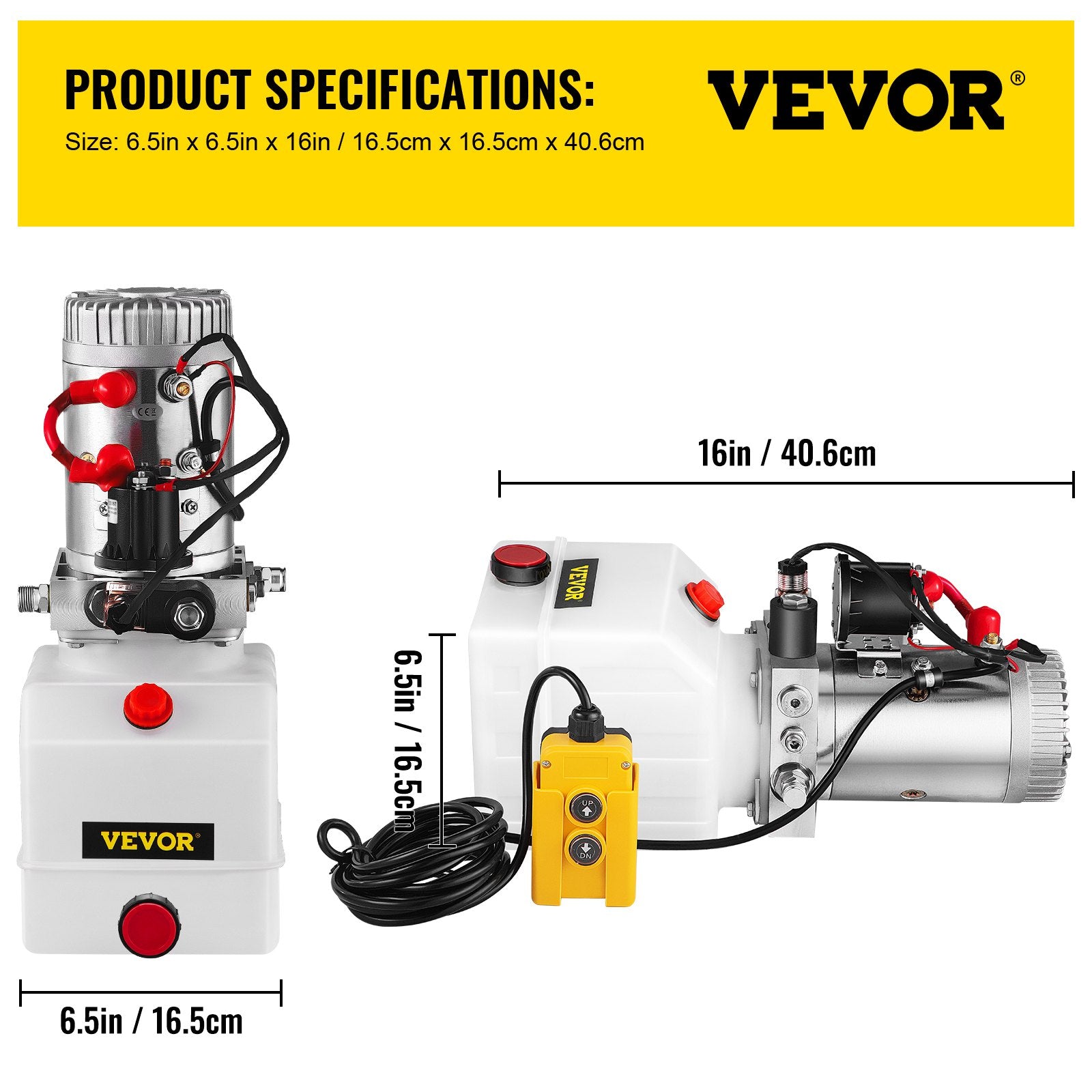

Product Specification
  • Hand held pendant with about 15 feet(177in / 4.5m)removal cord and start solenoid:
  • 1500 PS Max Relief Setting on B port:, SAE # 6 Port
  • Horizontal mount:
  • Relief valve pressure: 22 MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port)
  • Displacement of hydraulic pump: 0.562-4.350GPM
  • Material of tank: Plastic
  • Rated speed: 2850R/MIN
  • Motor voltage: DC12V
  • Motor power: 1.6-3KW

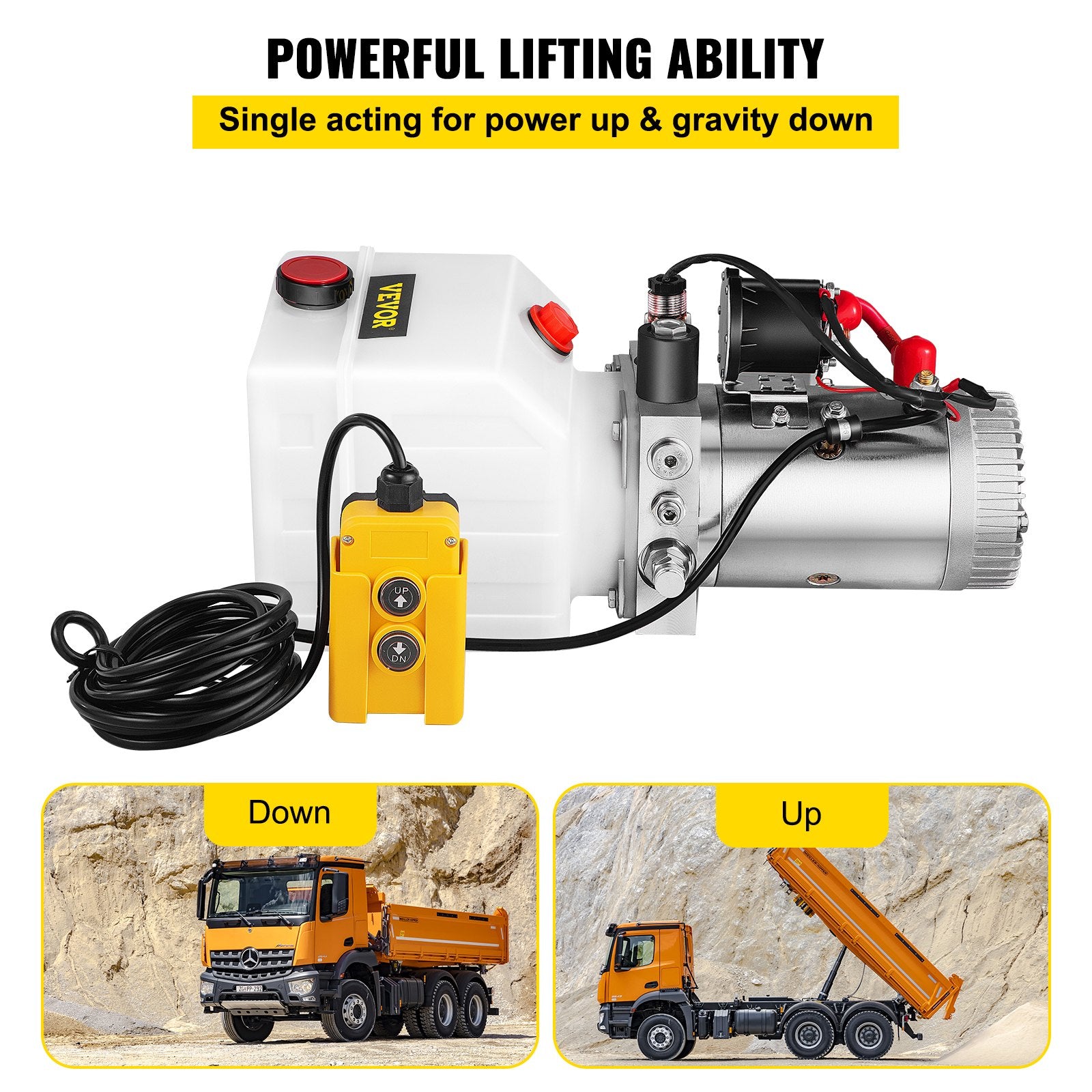

  • Single acting Power-Up/Gravity Down:
  • Fuel tank: 4L
  • 4 Quart Translucent Reservoir:
