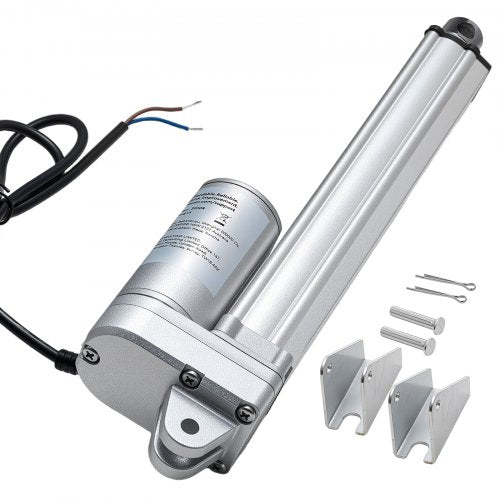

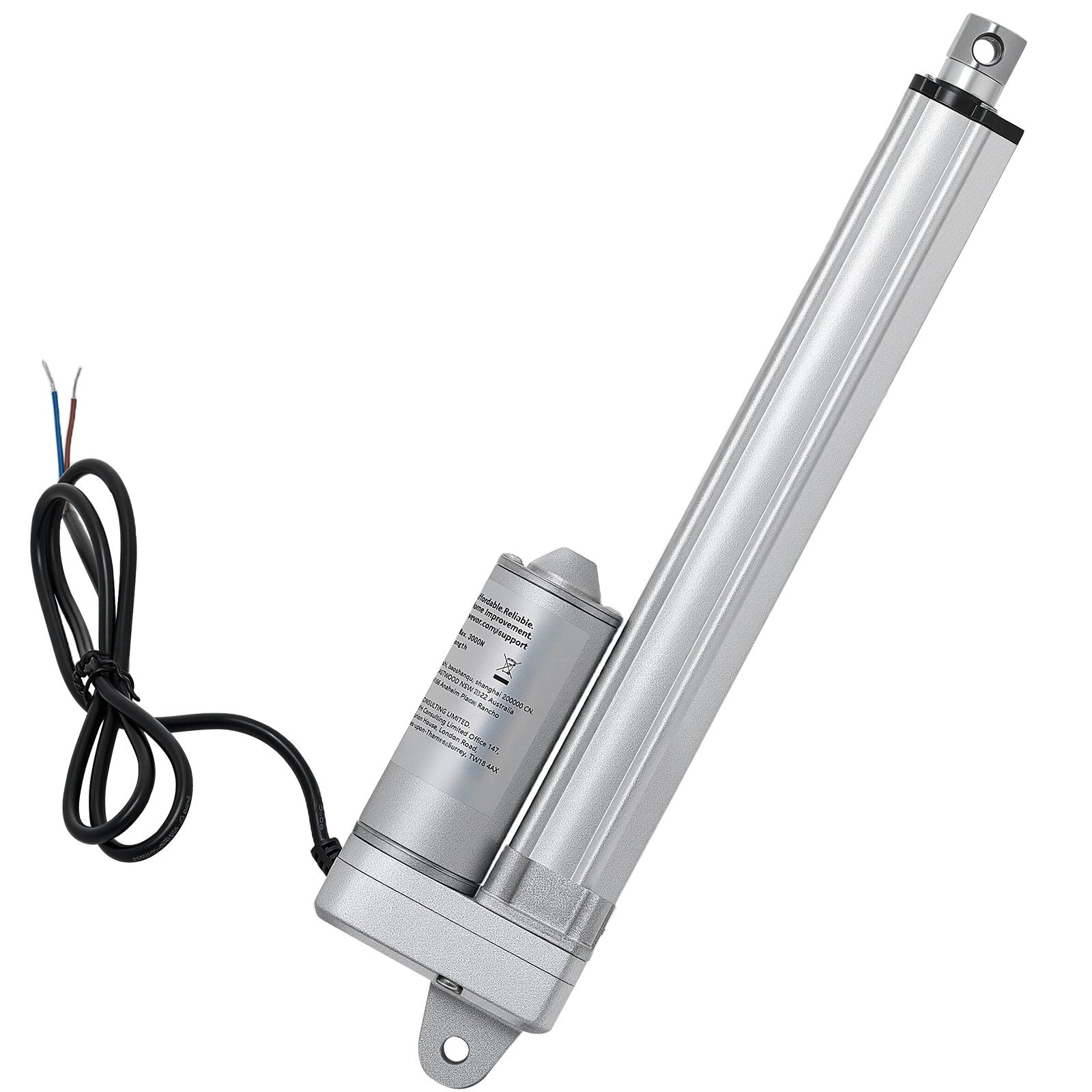

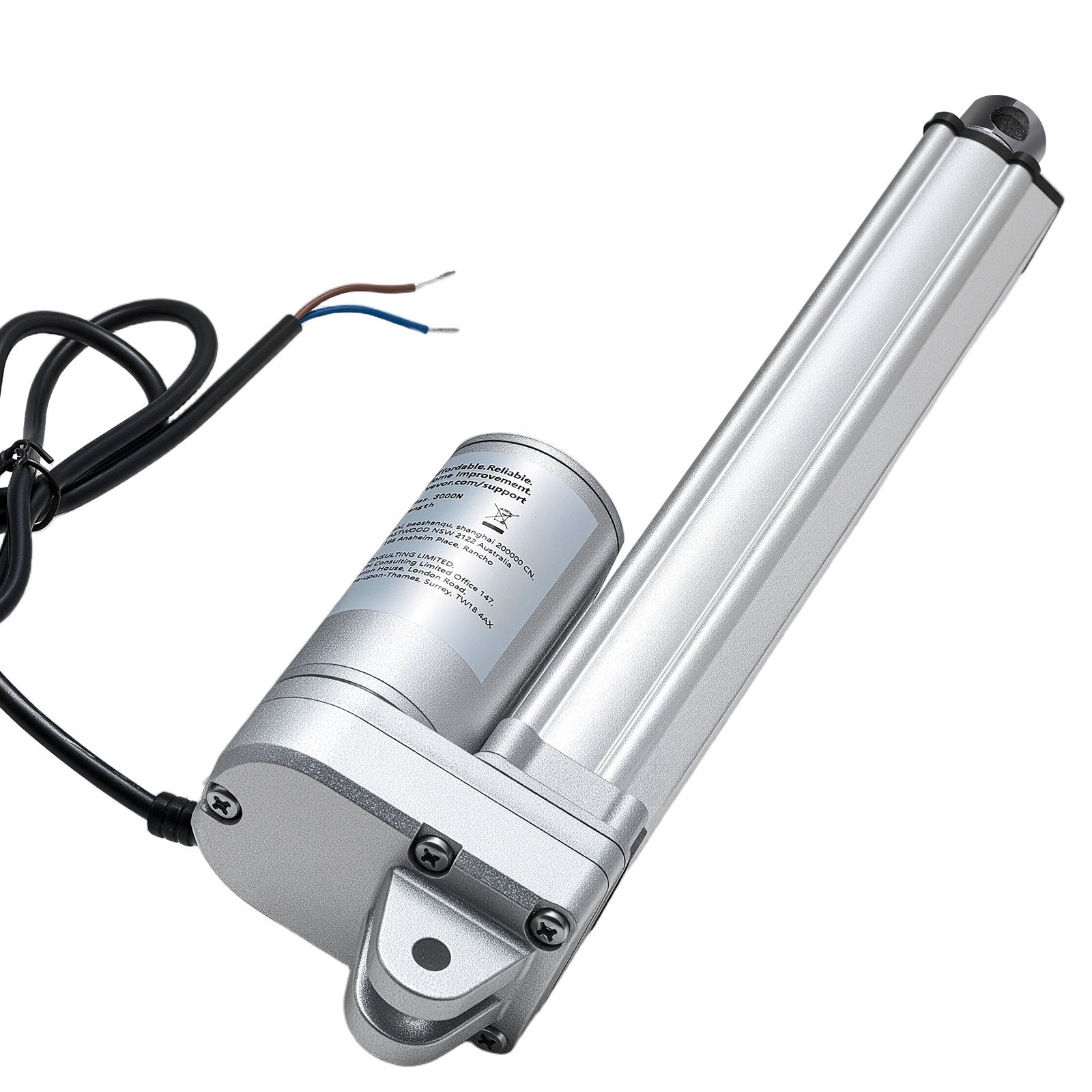

12V Linear Actuator, 203.2mm Stroke IP65 Waterproof Linear Actuator, 675lbs/3000N 0.2"/s Motion Actuators with Mounting Bracket for Solar Trackers, Industrial Machinery, Door Opener
12V Linear Actuator, 203.2mm Stroke IP65 Waterproof Linear Actuator, 675lbs/3000N 0.2"/s Motion Actuators with Mounting Bracket for Solar Trackers, Industrial Machinery, Door Opener
Regular price
940 SEK
Regular price
Sale price
940 SEK
Taxes included.
Quantity
Couldn't load pickup availability
Features & Details

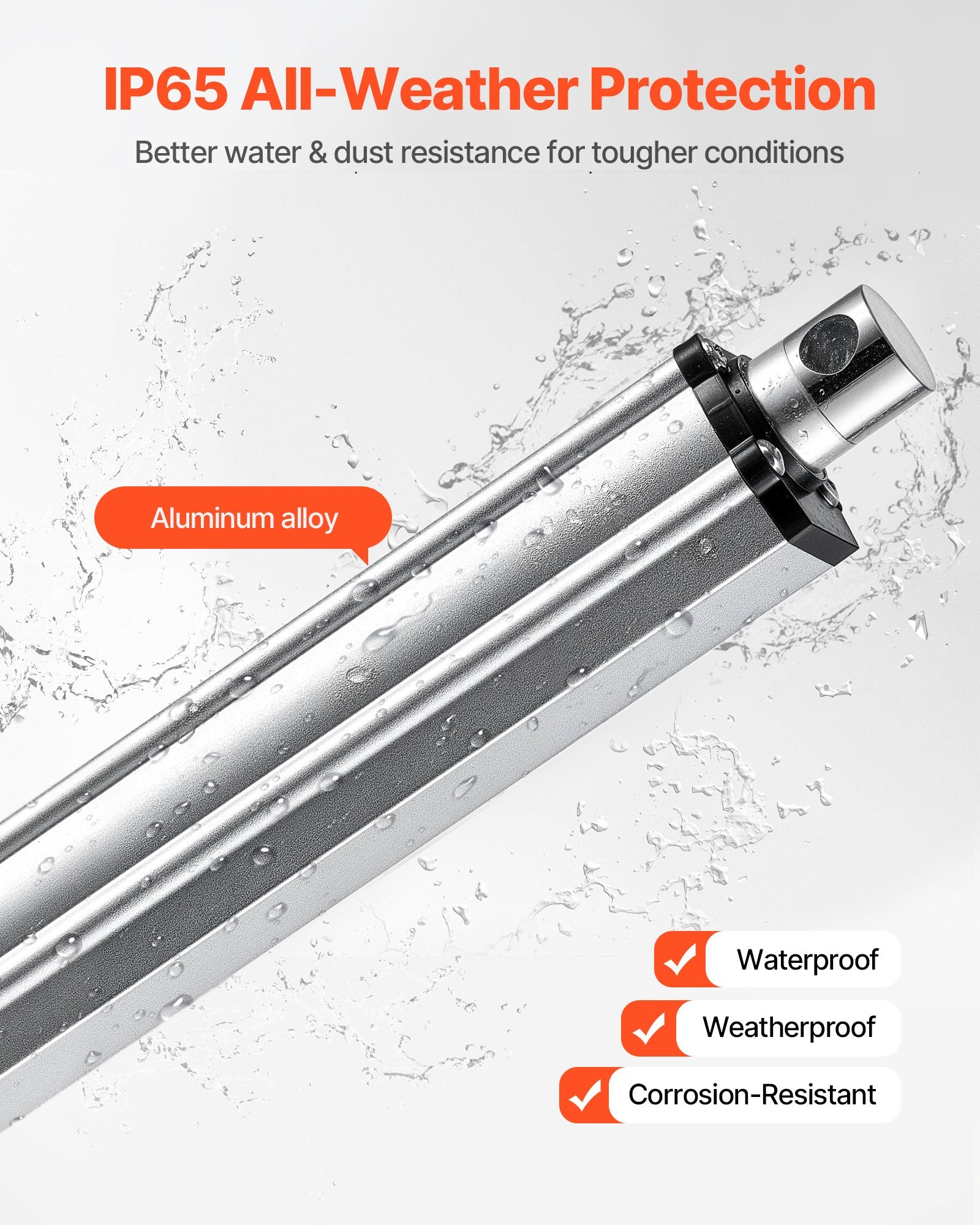

- IP65 Superior Protection: Rated IP65 for dust and water resistance, VEVOR's 12V linear actuator is suitable for use in outdoor environments. Ideal for lawn mowers, solar panel tracking systems and irrigation systems. (For longer lifespan, prolonged outdoor exposure is not recommended)

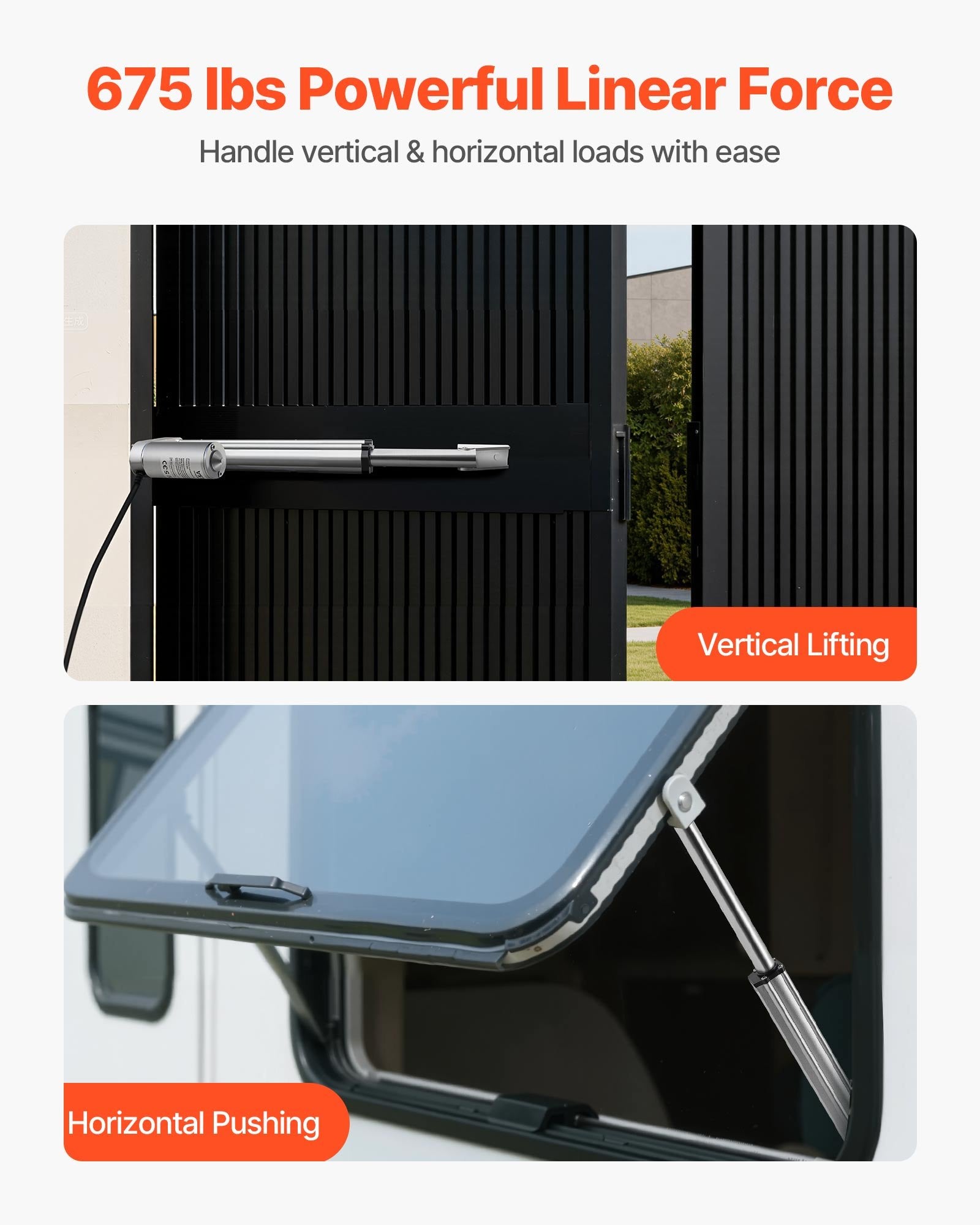

- Strong Torque Output: 675lbs (3000N) powerful torque output excels in various demanding tasks like agricultural machinery, construction equipment, and industrial automation, ensuring reliable performance in medium-load applications

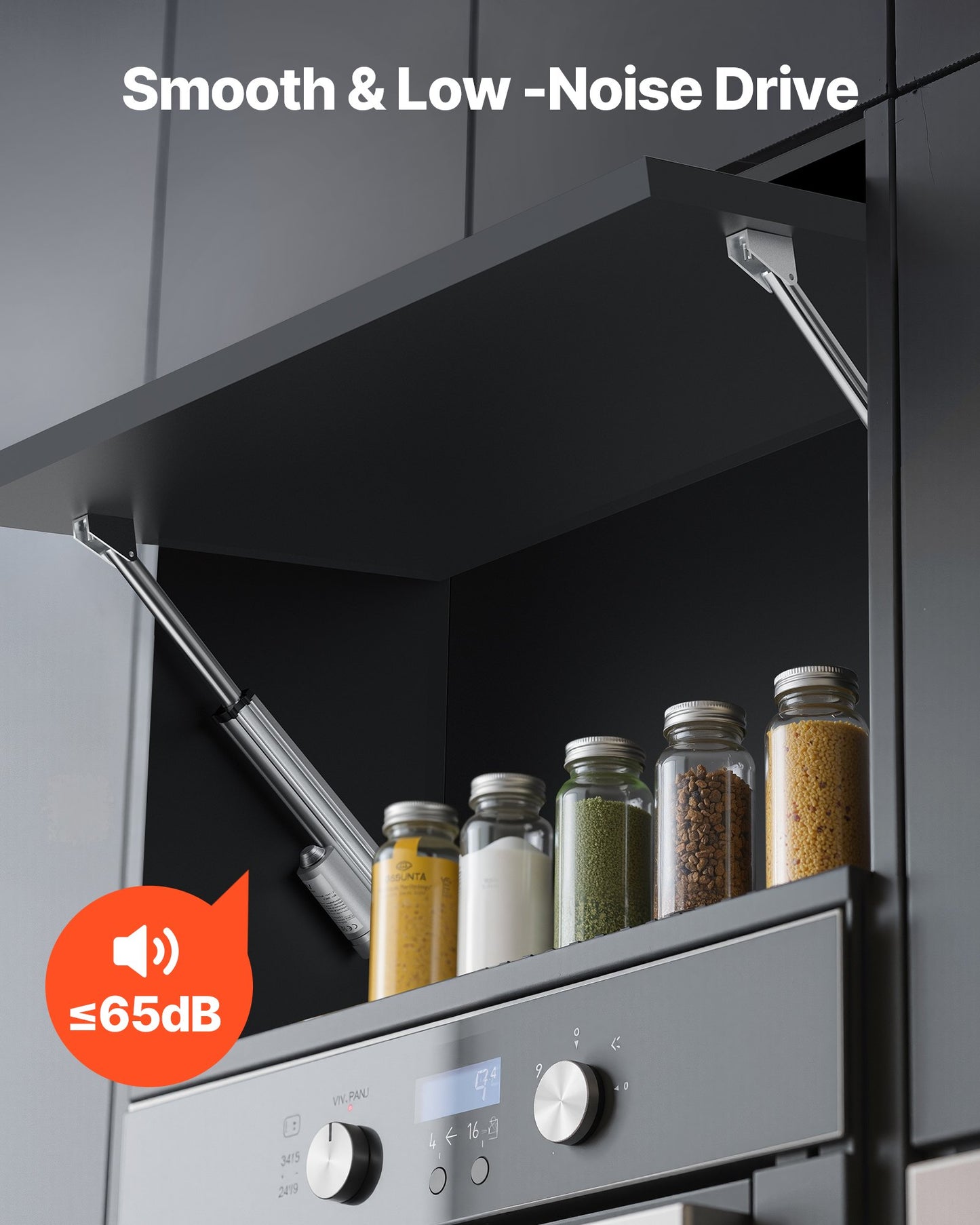

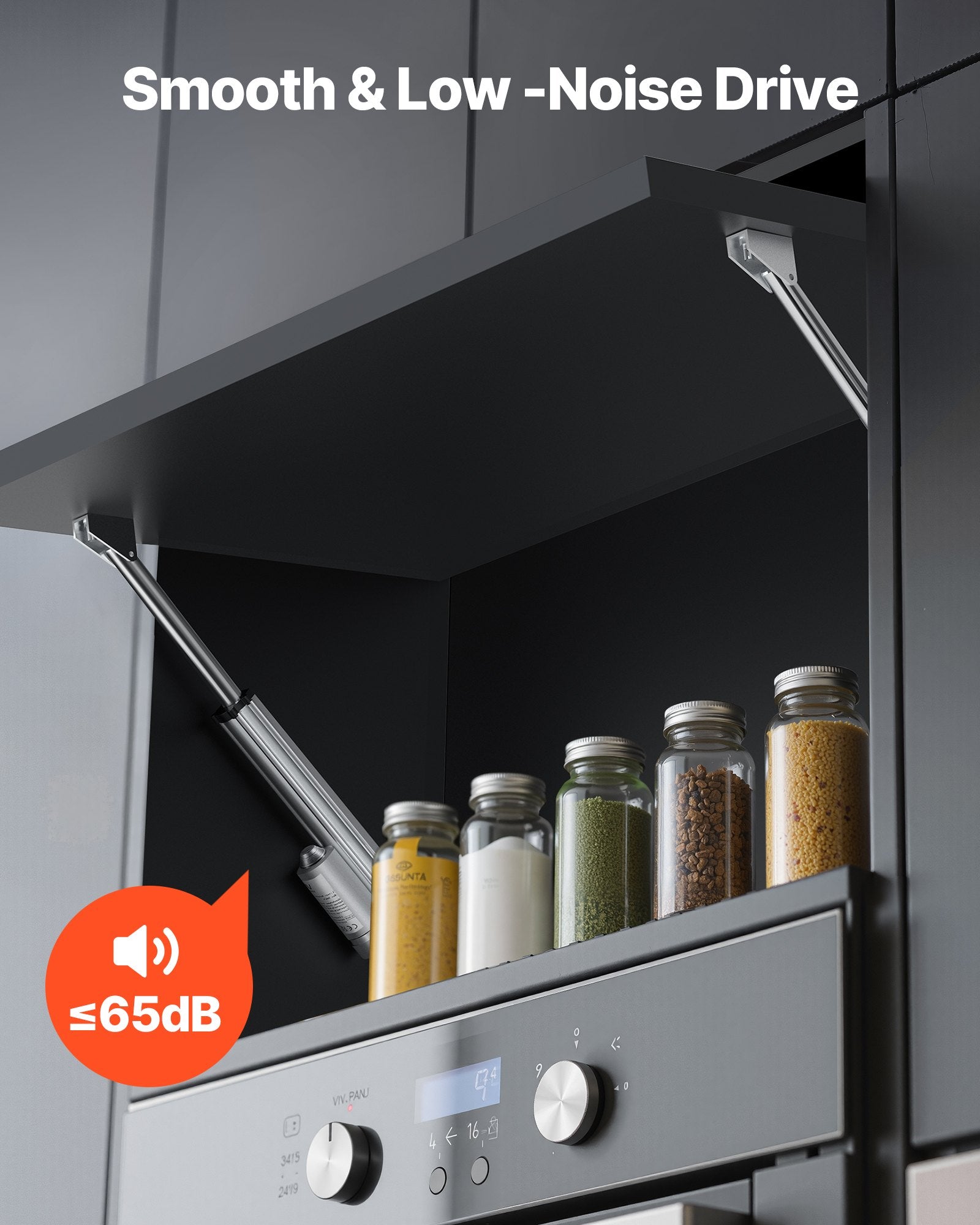

- Durable and Sturdy: Featuring an aluminum alloy housing and precision screw drive, the 12V linear actuator offers enhanced wear resistance and long-lasting stability. Operating under 65 dB (no-load noise) to reduce vibration and jamming during frequent cycles

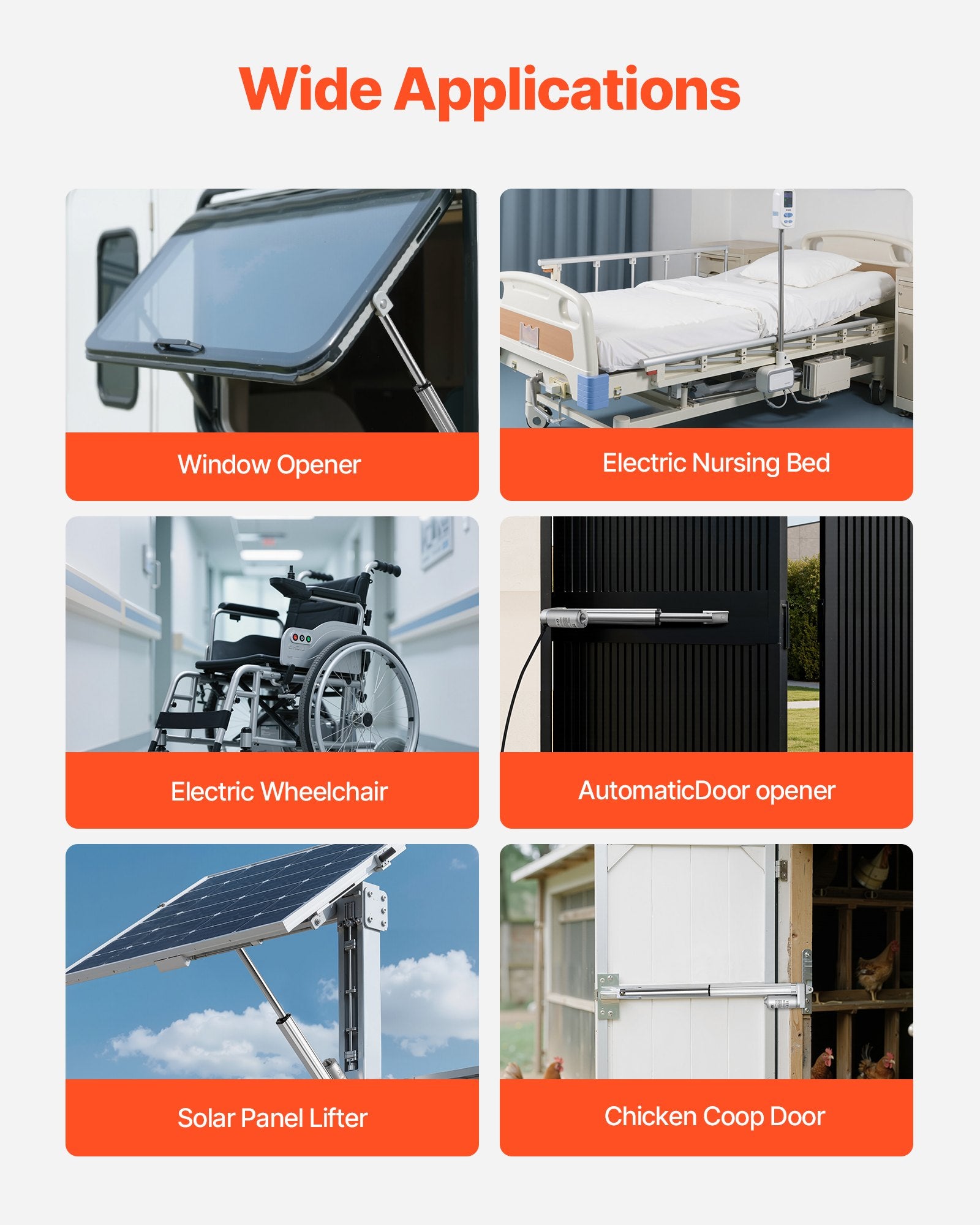

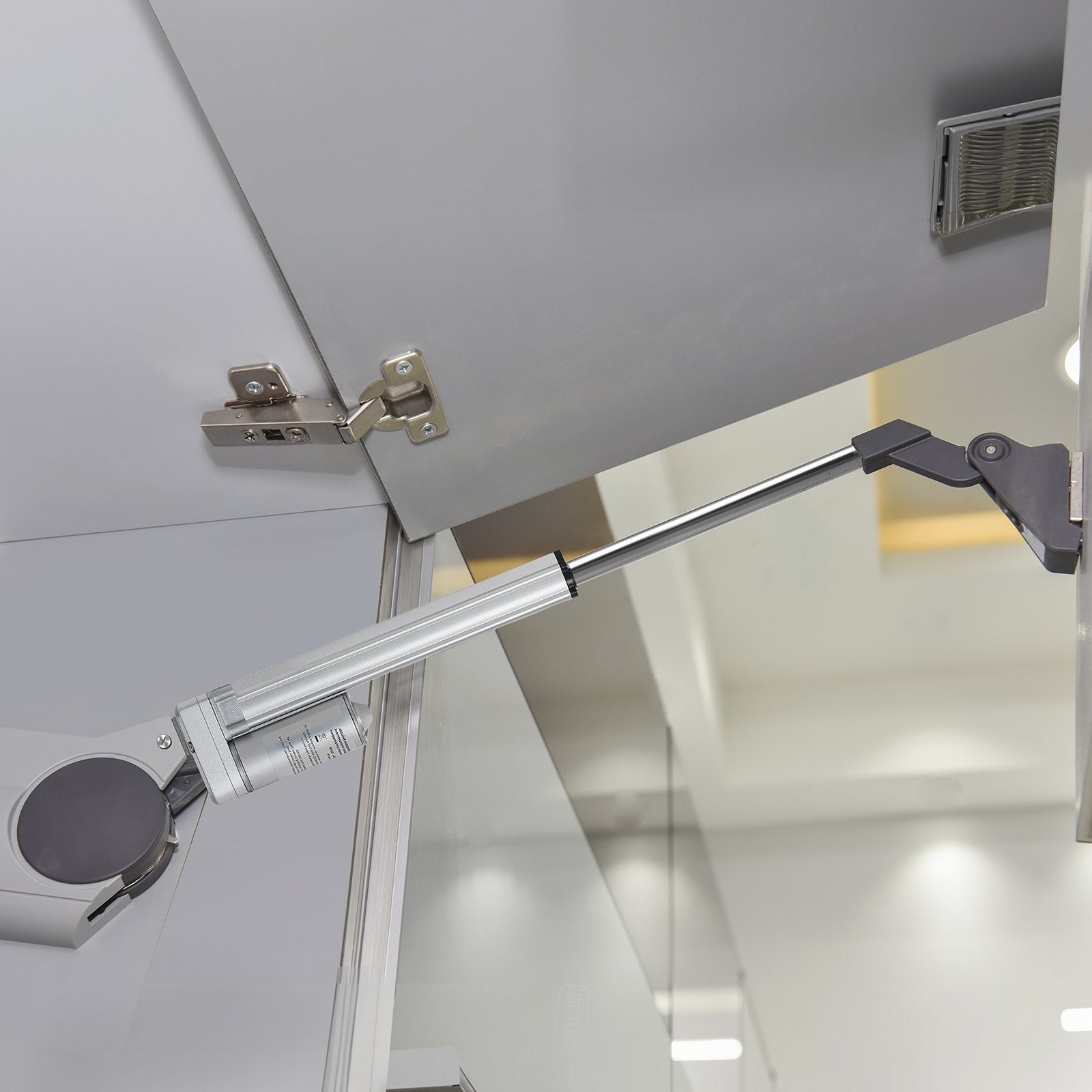

- Versatile Applications: Our linear motion actuator integrates across a wide range of applications, from furniture and home automation to industrial systems, mechanical equipment, transportation, and beyond. Empower automation at every step

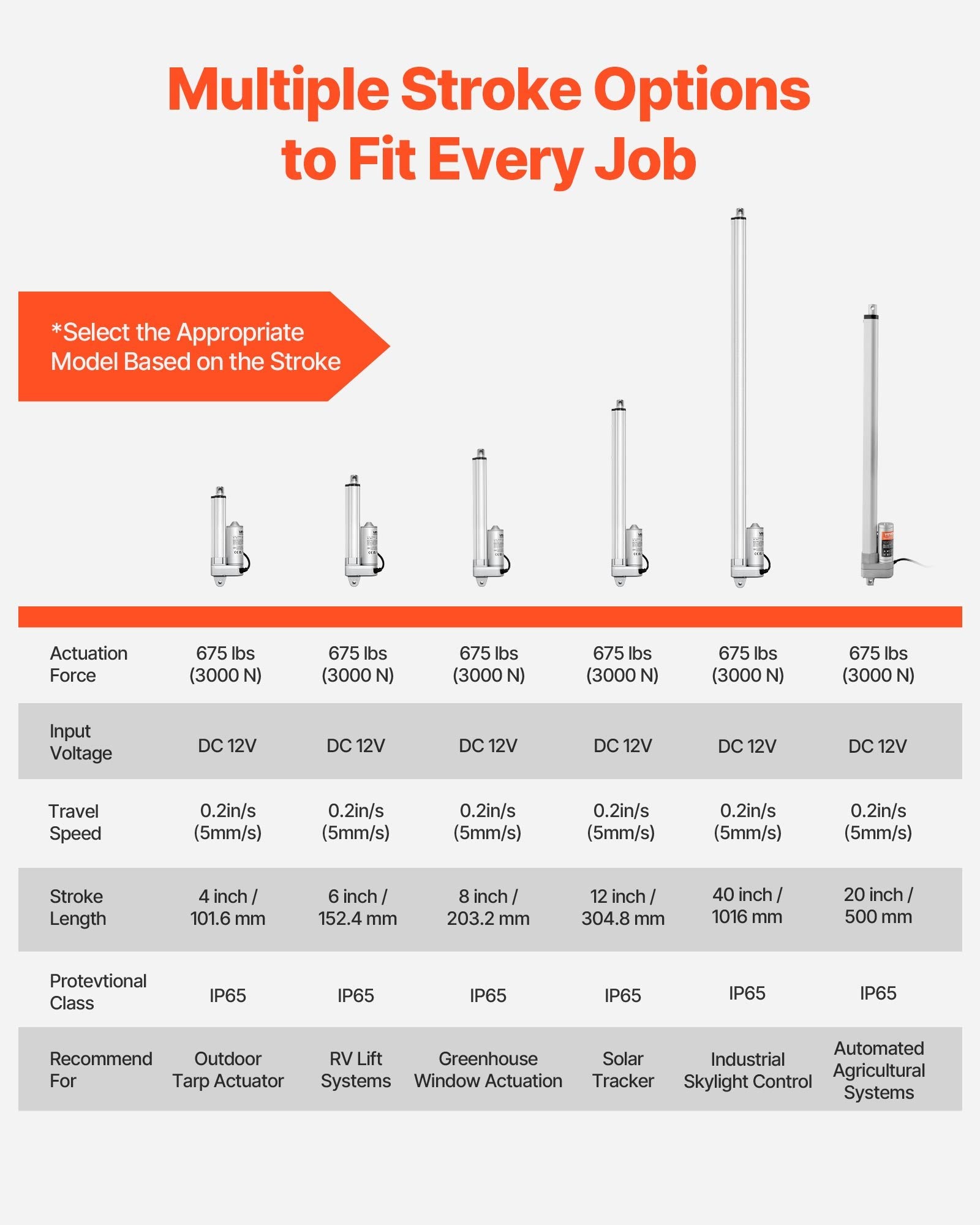

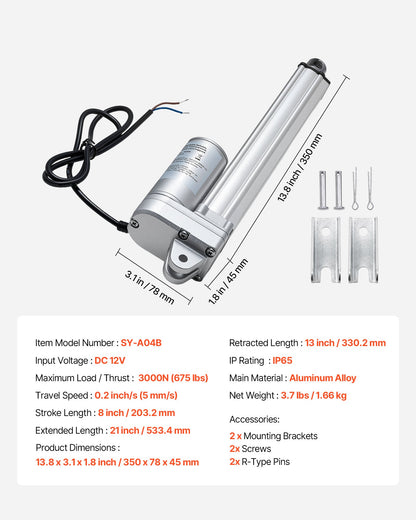

- Key Specifications: Travel Speed: 0.2"/s (5 mm/s); Stroke Length: 8" (203.2 mm); Extended Length: 21" (533.4 mm); Retracted Length: 13" (330.2 mm); Current Draw: 6 Amps; Input Voltage: DC 12V; Duty Cycle: 25%
- Maximum Load / Thrust: 3000N (675 lbs)
- IP Rating: IP65

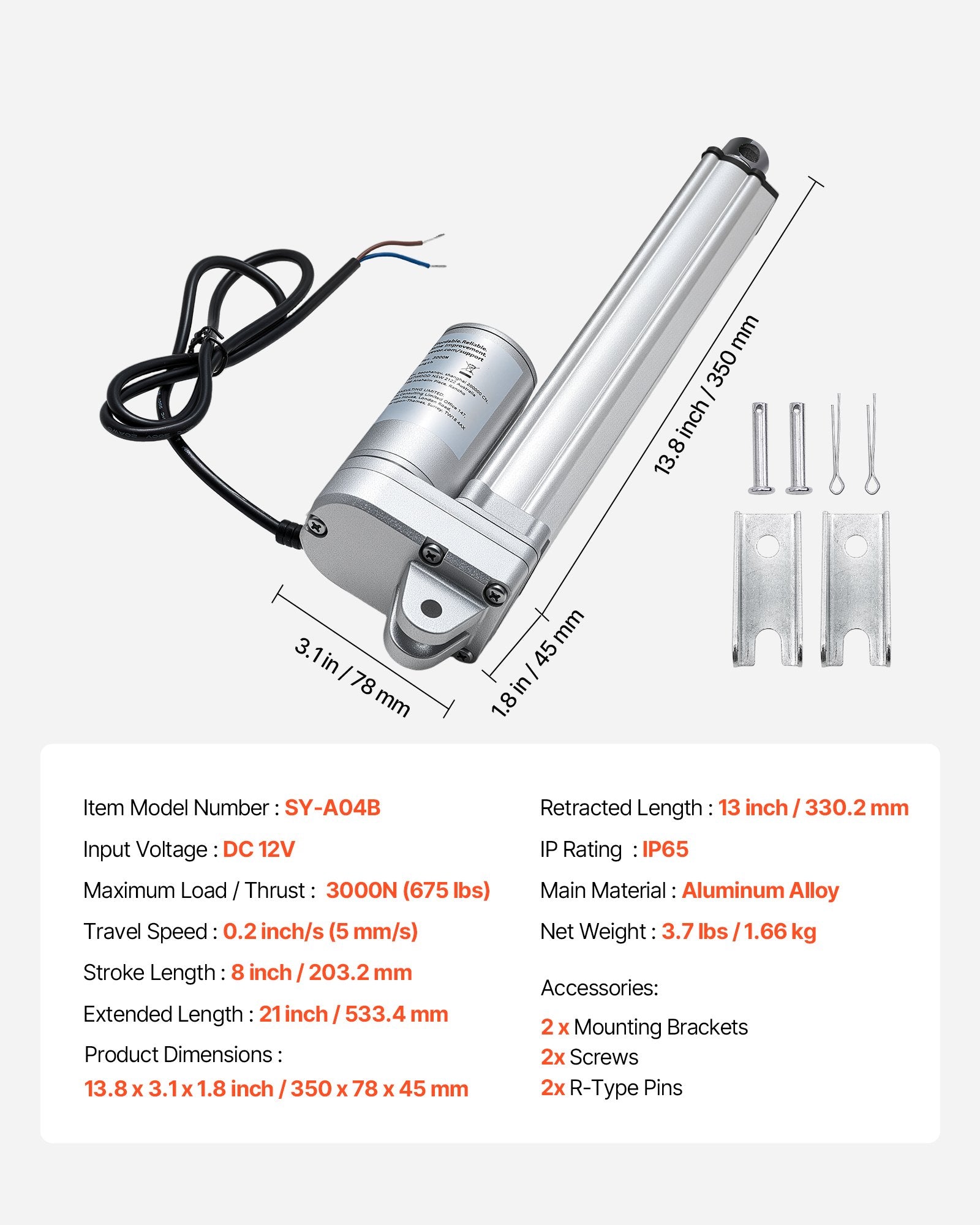

- Item Model Number: SY-A04B
- Travel Speed: 0.2 inch/s (5 mm/s)
- Extended Length: 21 inch / 533.4 mm
- Input Voltage: DC 12V
- Stroke Length: 8 inch / 203.2 mm
- Retracted Length: 13 inch / 330.2 mm
- Product Dimensions: 13.8 x 3.1 x 1.8 inch / 350 x 78 x 45 mm
- Net Weight: 3.7 lbs / 1.66 kg
- Main Material: Aluminum Alloy
