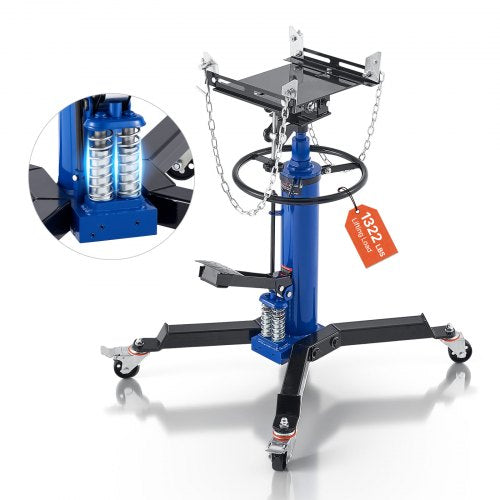

Hydraulic Transmission Jack, 1322 lbs / 0.6 Ton Lifting Capacity Telescoping Transmission Jack with Foot Pedal, Dual Telescopic Trans, 88-176 cm High Lifting Height, Garage/Shop Lift Hoist

Hydraulic Transmission Jack, 1322 lbs / 0.6 Ton Lifting Capacity Telescoping Transmission Jack with Foot Pedal, Dual Telescopic Trans, 88-176 cm High Lifting Height, Garage/Shop Lift Hoist

3,620.00 SEK
3,620.00 SEK
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details

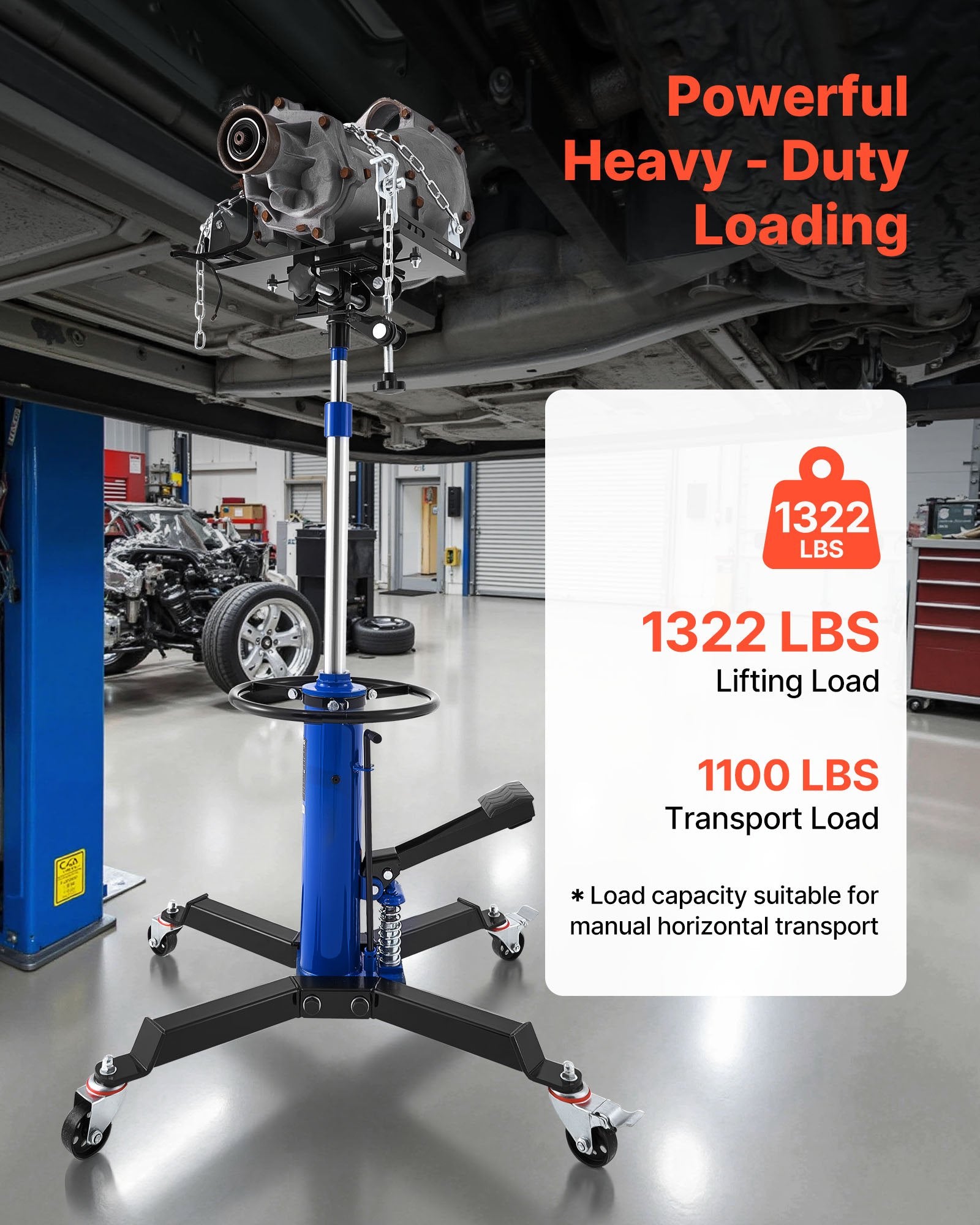

  • Heavy Load Capacity: The hydraulic transmission jack features a heavy-duty steel structure with a lifting capacity of 1322 lbs / 600 kg and a transport capacity of 1100 lbs / 500 kg, easily lifting transmissions, drive shafts, and axles while maintaining reliable operation
  • High Lifting Range: Our high lift transmission jack offers a lifting range of 34.6-69.3 in / 880-1760 mm, allowing easy adjustment to the desired height and providing ample workspace. Note: Vehicles must be supported by a car lift

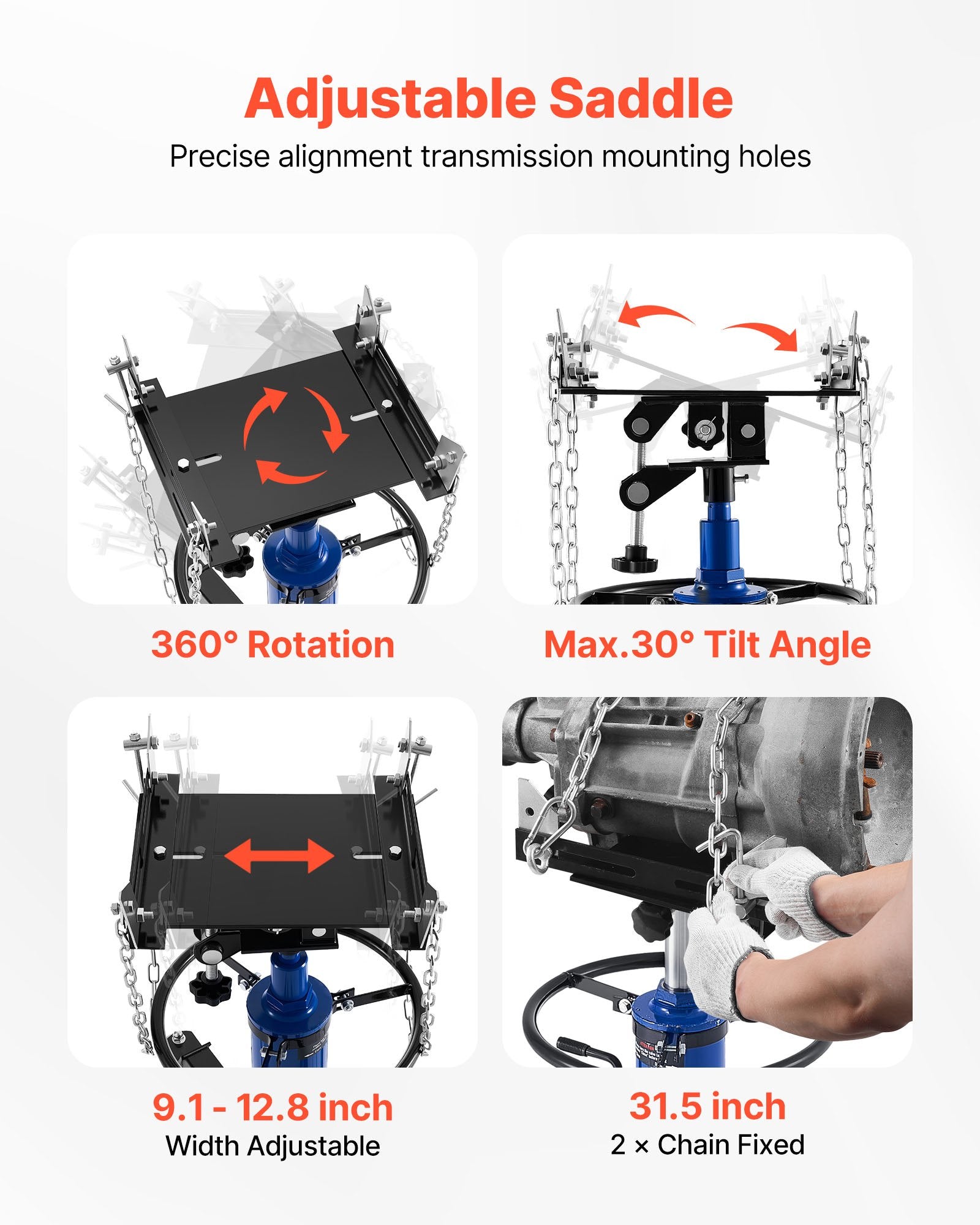

  • Adjustable Tray: The tray on this hydraulic telescoping jack rotates 360° and tilts up to 30° for precise gearbox alignment. The mounting plate adjusts in width to fit different transmissions, improving repair accuracy. Note: Secure parts with chains to avoid falling

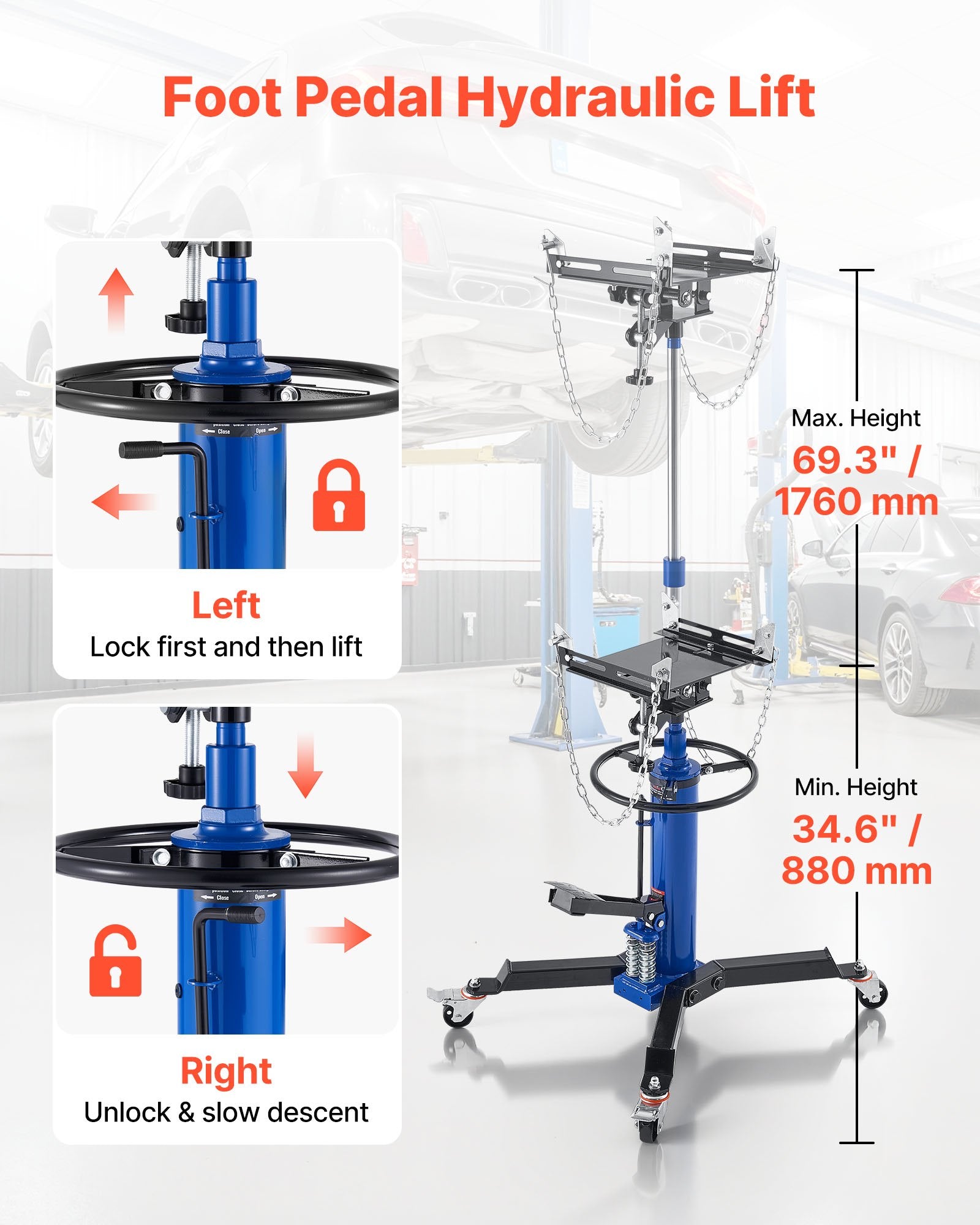

  • Foot-Operated Hydraulic: The trans jack operates via a foot pedal, eliminating manual lifting and providing smooth, effortless raising and lowering. Turn the return valve handle to the right to unlock, allowing it to lower slowly and reducing sudden drops
  • 360° Mobility: The transmission jack comes with four large swivel castors (two with brakes) paired with an X-shaped base, enabling flexible movement in the garage while remaining sturdy and stable during operation. Brake locks position quickly, avoiding shift or wobble
Product Specification
  • Lifting Stroke: 34.6 in / 880 mm
  • Type: Foot-operated Sleeve Cylinder Type
  • Max. Support Height (surface to ground): 69.3 in / 1760 mm
  • Lifting Capacity: 1322 lbs / 600 kg
  • Transport Capacity: 1100 lbs / 500 kg
  • Item Model Number: GW-0.6
  • Single or Dual Piston: Dual Piston

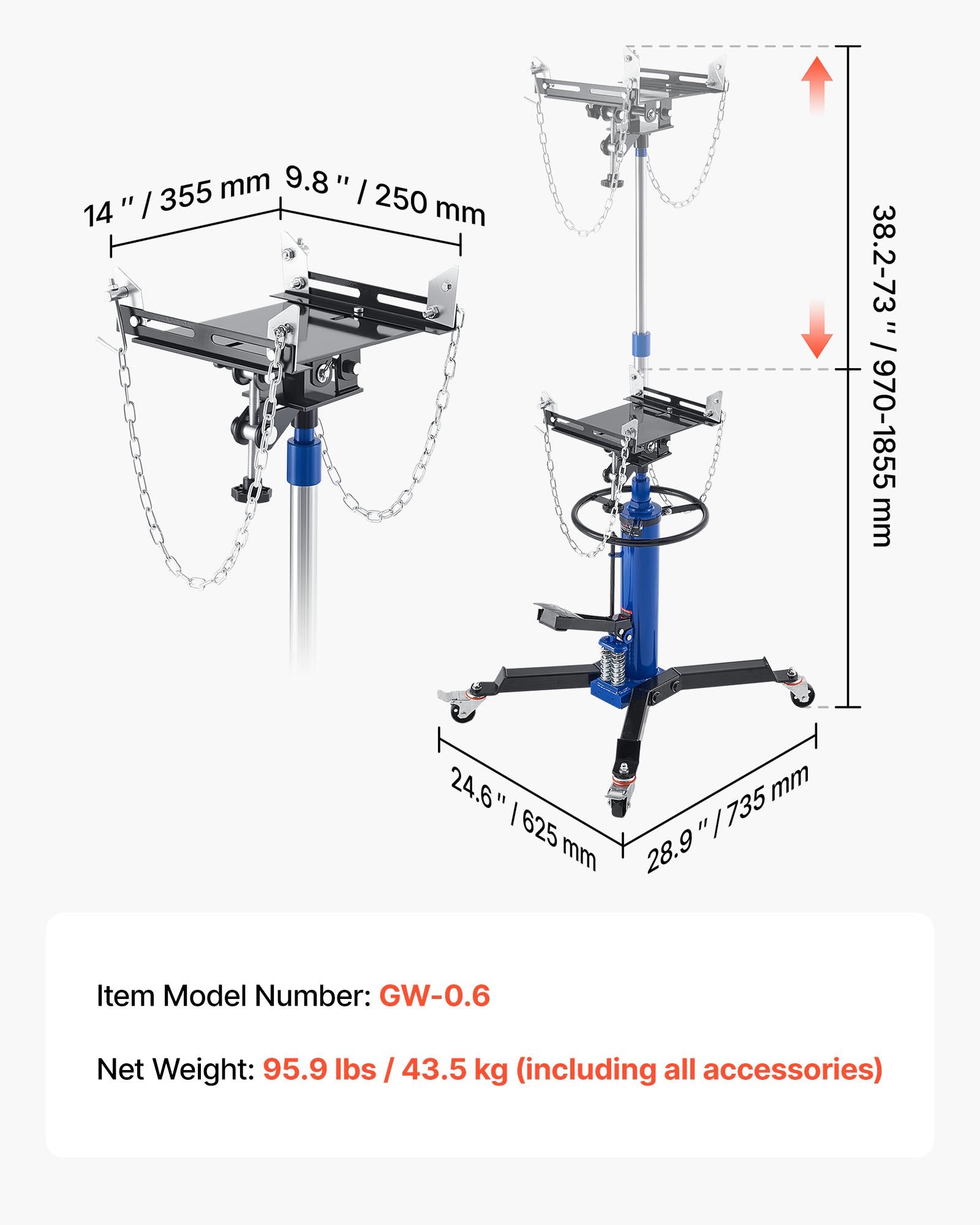

  • Product Dimensions: 28.9 x 24.6 x 38.2–73 in / 735 x 625 x 970–1855 mm
  • Min. Support Height (surface to ground): 34.6 in / 880 mm
  • Net Weight: 100.3 lbs / 45.5 kg
  • Main Material: Frame: Q235B Steel
  • Piston Rod: 45# Steel
