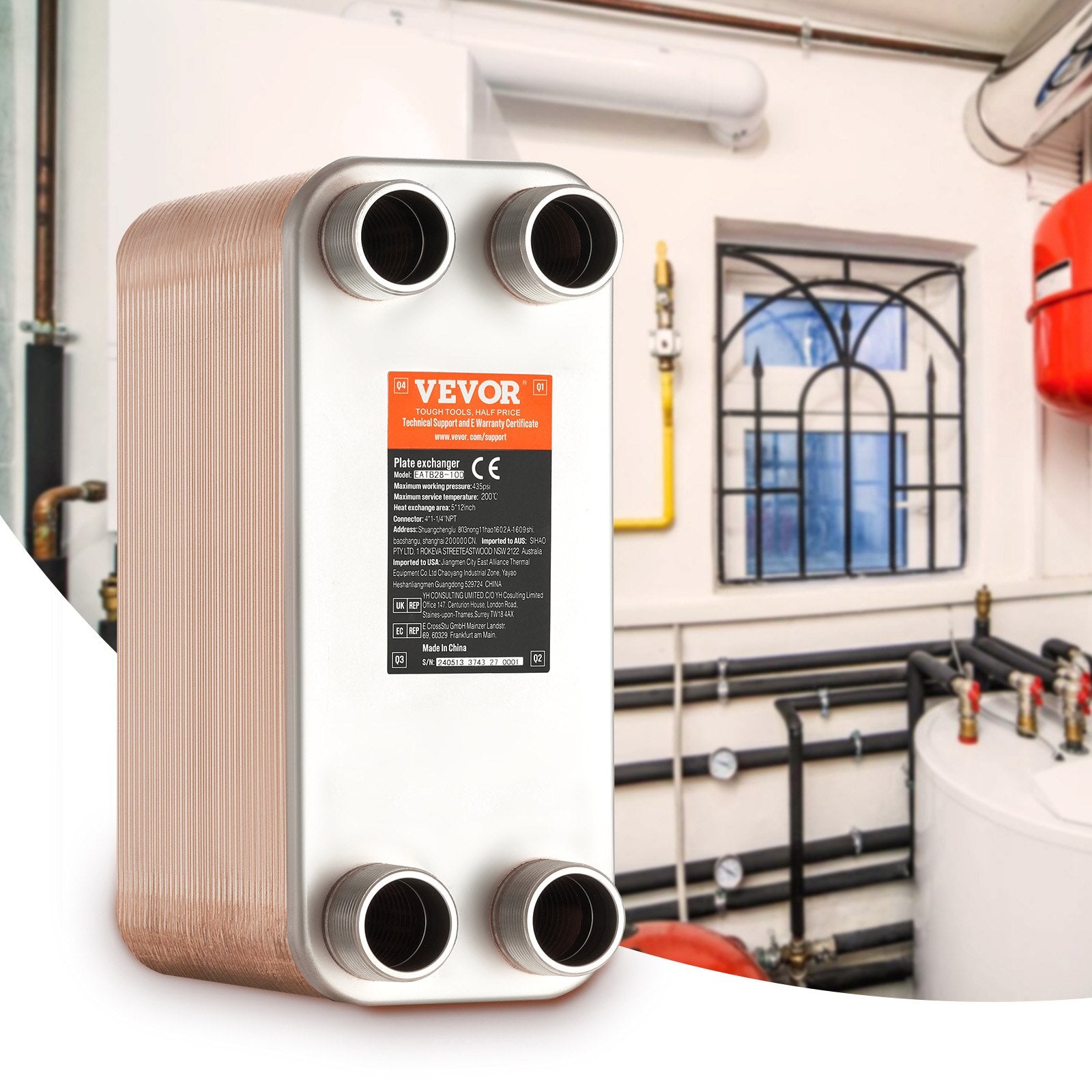

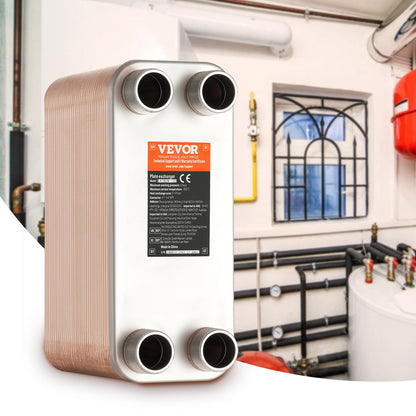

High-Quality Materials: Made of 316L stainless steel with 99% copper brazing at edges and contact points, forming a robust and leak-resistant unit that withstands high pressure and temperature. CE certified for reliable quality.
Efficient Heat Transfer: The high-conductivity stainless steel plates feature an asymmetrical herringbone pattern, creating intense pressure turbulence for efficient heating/cooling. With up to 99% heat efficiency, it generates 780-1080K BTU per hour, saving pump power and electricity, reducing overall application costs.

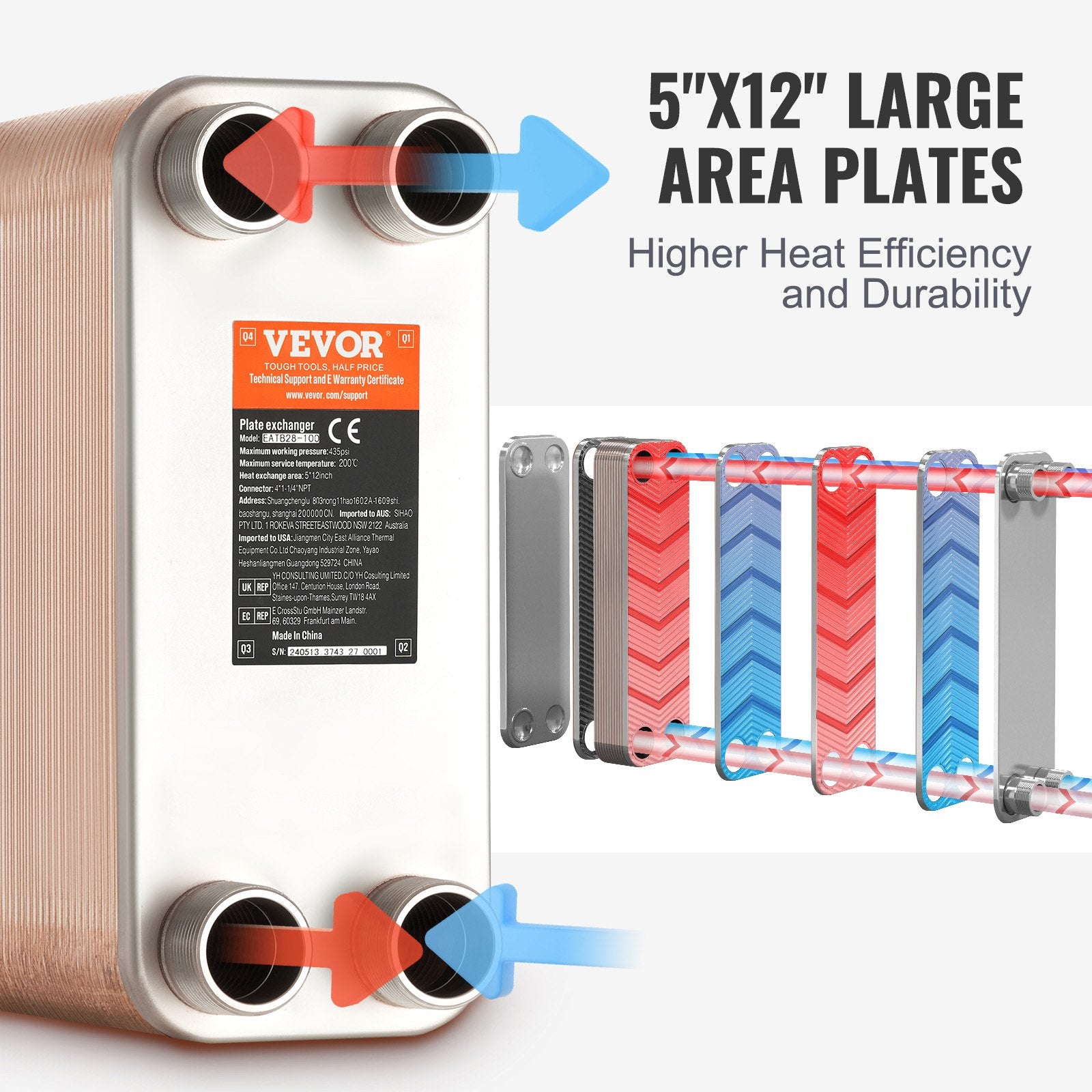

Large Heat Exchange Area: The heat exchanger features 5”x12” plates with up to 80 plates, providing excellent heat transfer performance for maximum efficiency. Suitable for operating temperatures from -292℉ to 392℉.

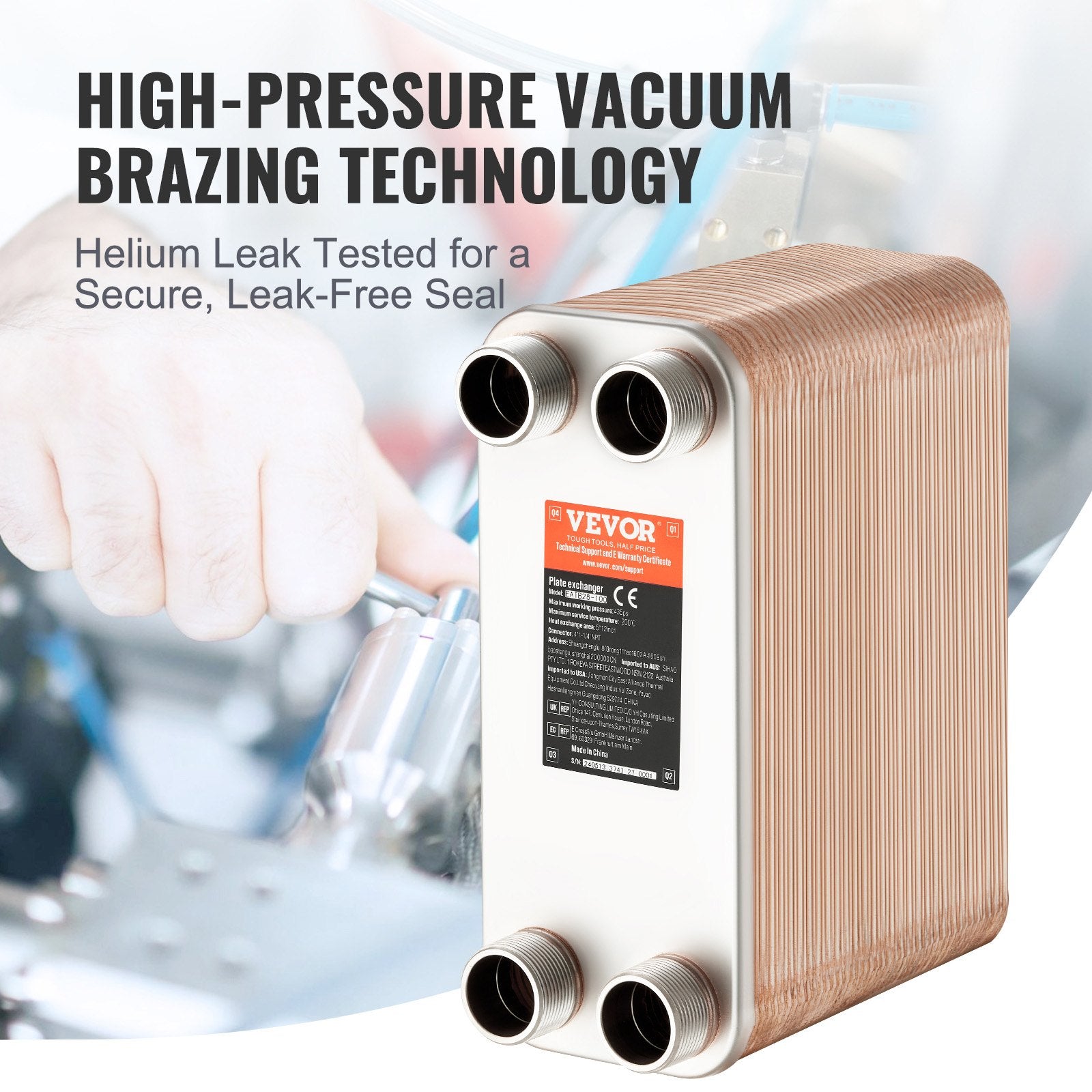

Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes helium leak testing, ensuring long life and high reliability.

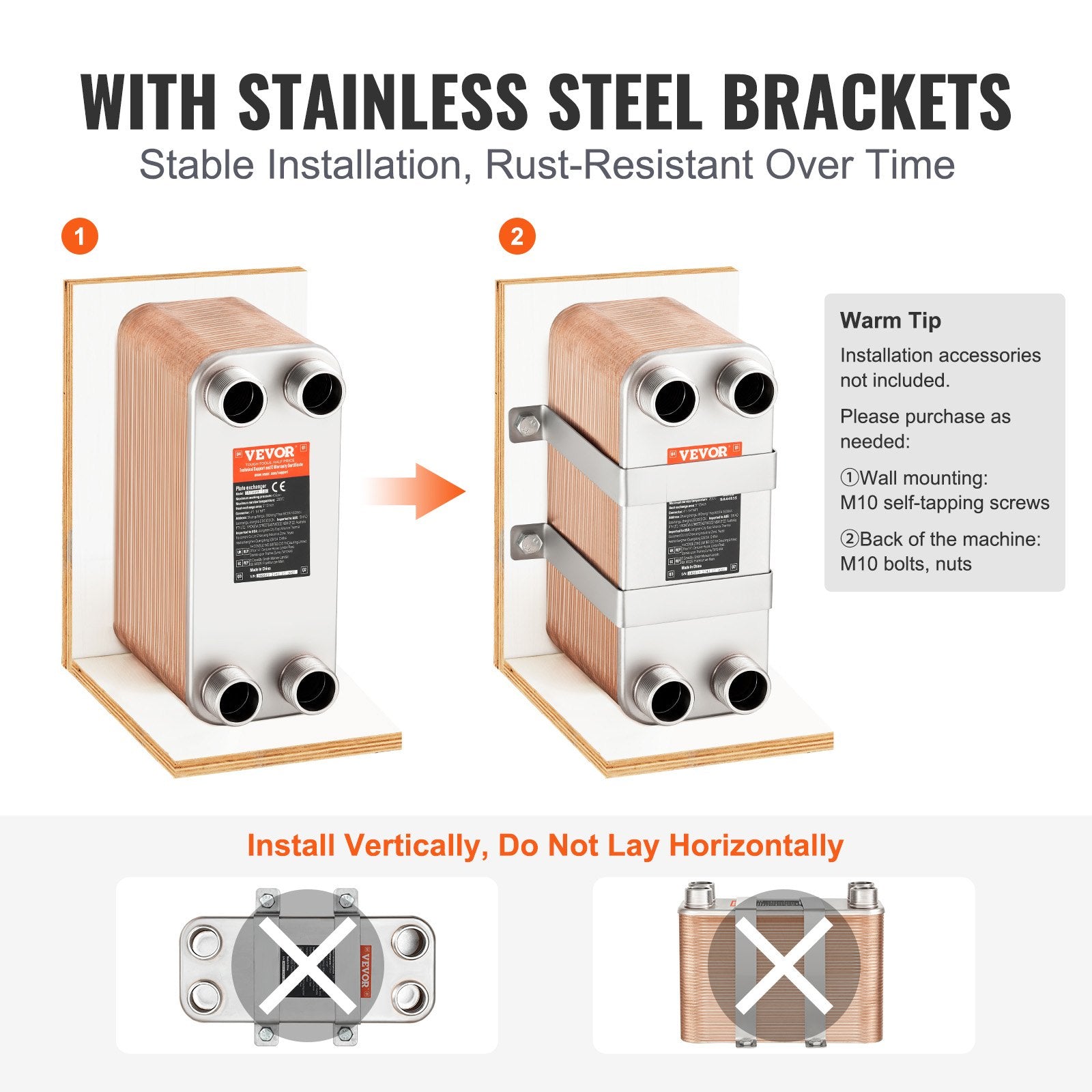

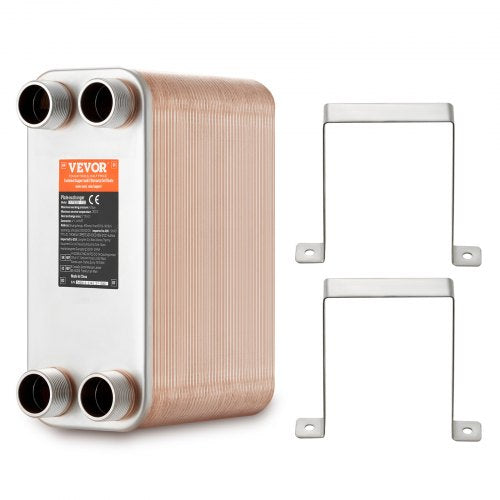

Stable Installation: Includes two stainless steel brackets made of 304 stainless steel, offering excellent rust resistance and stability for easy and secure mounting of the heat exchanger.
Product Specification
Plate Area: 5x12 inch/ 127x305mm
Heat Capacity: 780-1080K BTU
Port: 4*1-1/4" MNPT External Thread
Color: Stainless Steel + Copper Color
Model: EATB28-80
Thermal Efficiency: 90～99%
Material: 304/316 Stainless Steel
Solder: 99.9% Copper Brazing
Plates Quantity(pcs): 80
Product Dimensions (L x W x H): 11.85x4.96x8.86" / 301x126x225 mm
