Pneumatic Crimping Tool Am-10, Air Powered Wire Terminal Crimping Machine Crimping Up To 16mm2, Pneumatic Crimper Plier Machine with 10 Sets Of Dies for Many Kinds of Terminals

Pneumatic Crimping Tool Am-10, Air Powered Wire Terminal Crimping Machine Crimping Up To 16mm2, Pneumatic Crimper Plier Machine with 10 Sets Of Dies for Many Kinds of Terminals

2,260.00 SEK
2,260.00 SEK
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • Durable Material: The pneumatic crimping machine adopts tool steel material, solid forging, and durable. Our crimping machine has received international CE certification, rest assured purchase. Type: AM-10, Output Force: 1.3 T Air Pressure 0.5 Mpa, Air Pressure Flow: 0.5-0.7 Mpa.

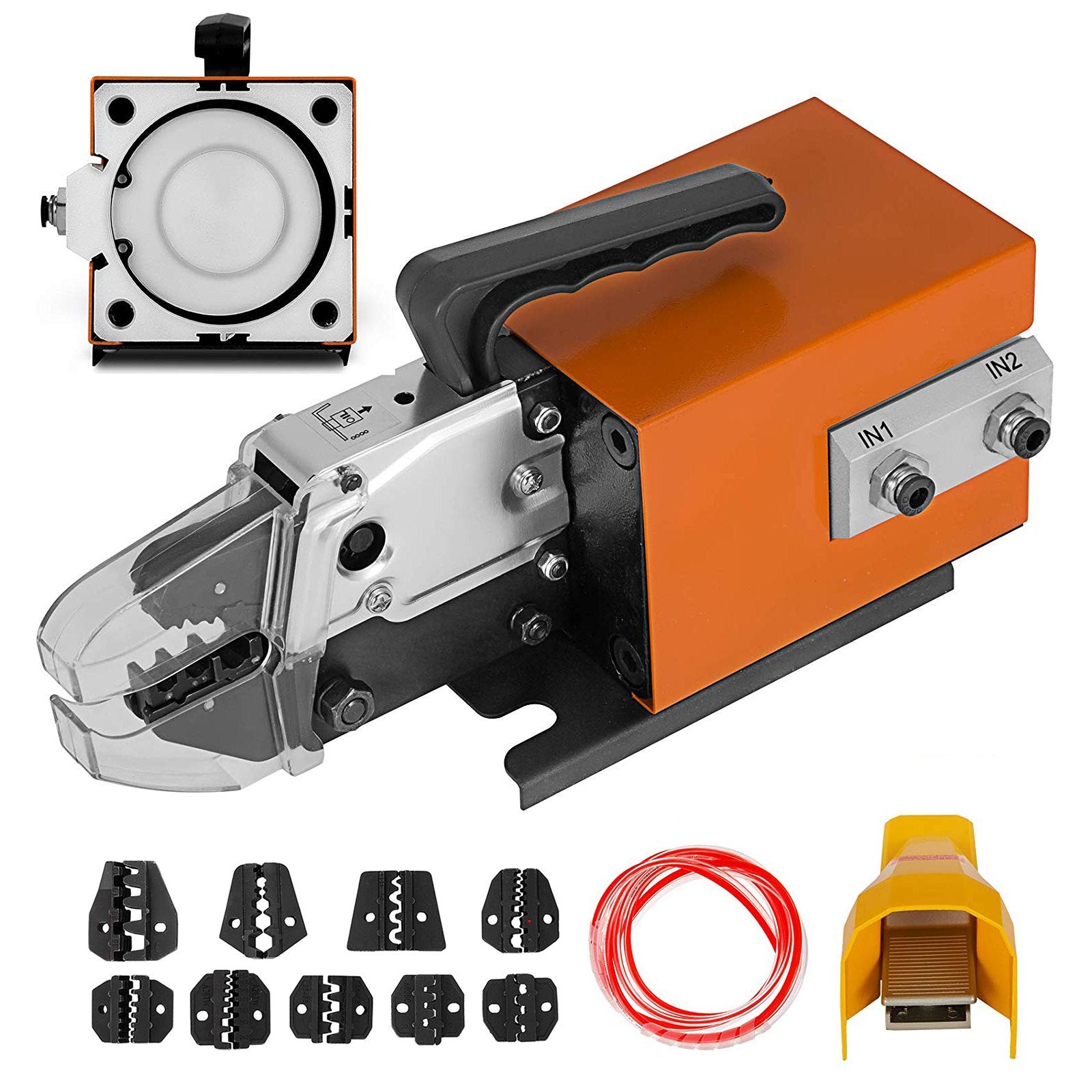

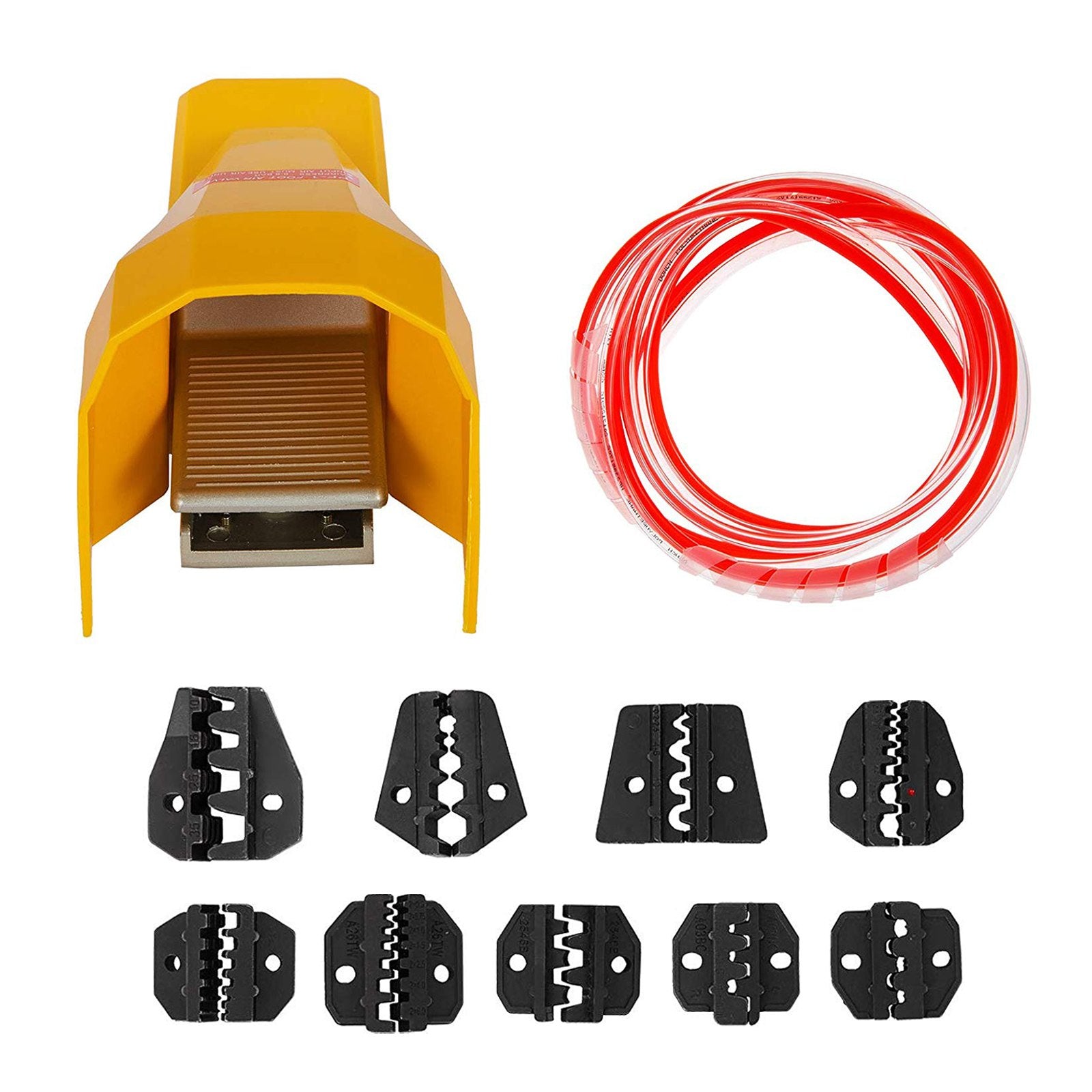

  • High Efficient: This AM-10 pneumatic crimping tool is driven by a dual-action standard cylinder to achieve high efficiency and quality in both crimping force and speed. It has a precision die jaws, capable of precision crimping work. Besides, we provide you with an extra 10 sets of dies for free!
  • Comfortable Operation: Foot-valve design, with less effort than conventional crimping machines more efficient. Mode jaws super fast conversion to meet your diverse crimp demand, fast crimping the port of different shapes.

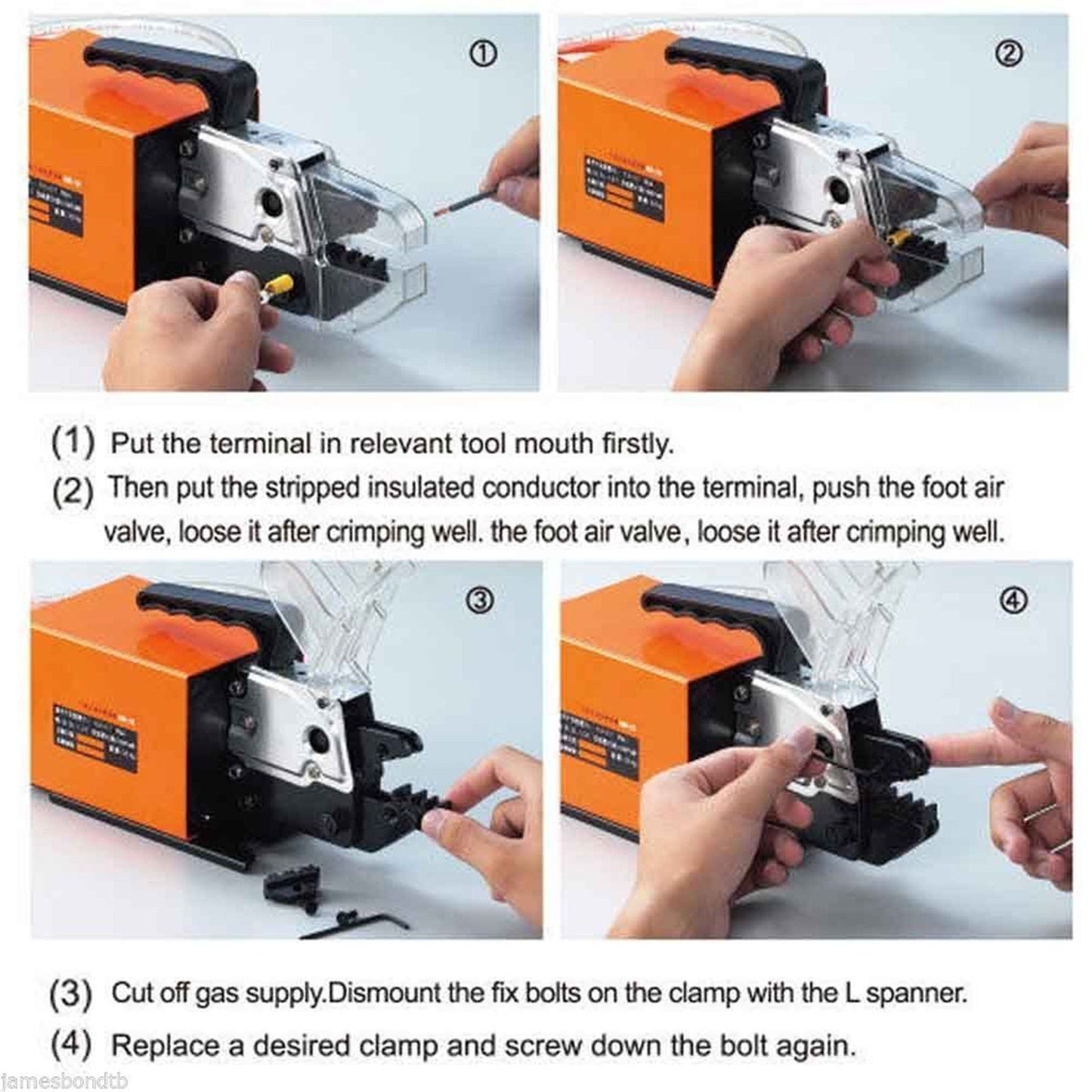

  • Easy to Use: After the first crimping machine assembly, slowly press machine so that the foot-valve low-speed idle operation 1 to 2 times, before normal use. Its handle design is compact, easy to carry, and easy to maintain. NOTE: You need to prepare an 8mm (5/16 inch) air hose yourself to connect the air source to the product's foot pedal.
  • Wide Applications: The pneumatic crimping tool is suitable for Non-insulated terminals ≤ 16 mm², Rre-insulated terminals ≤ 6 mm², Tube terminals ≤ 35 mm². We provide 15 additional sets of dies to meet various terminal interface requirements.
Product Specification
  • Rre-insulated terminals ≤ 6 mm²:
  • Non-insulated terminals ≤ 16 mm²:
  • Max. Operating Pressure: 1.0 Mpa
  • Item Model Number: AM-10
  • Air Pressure: 0.5-0.7 Mpa
  • Output Force: 1.3 T
  • Material: Tool steel
  • Tube terminals ≤ 35 mm²:
