Automatic Optical Level, 24X, 40 mm Aperture Auto Level Kit with Magnetic Dampened Compensator and Transport Lock, Height Distance Angle Measuring Tool with Hard Plastic Case, IP54 Waterproof
Automatic Optical Level, 24X, 40 mm Aperture Auto Level Kit with Magnetic Dampened Compensator and Transport Lock, Height Distance Angle Measuring Tool with Hard Plastic Case, IP54 Waterproof
Regular price
970.00 SEK
Regular price
Sale price
970.00 SEK
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Features & Details

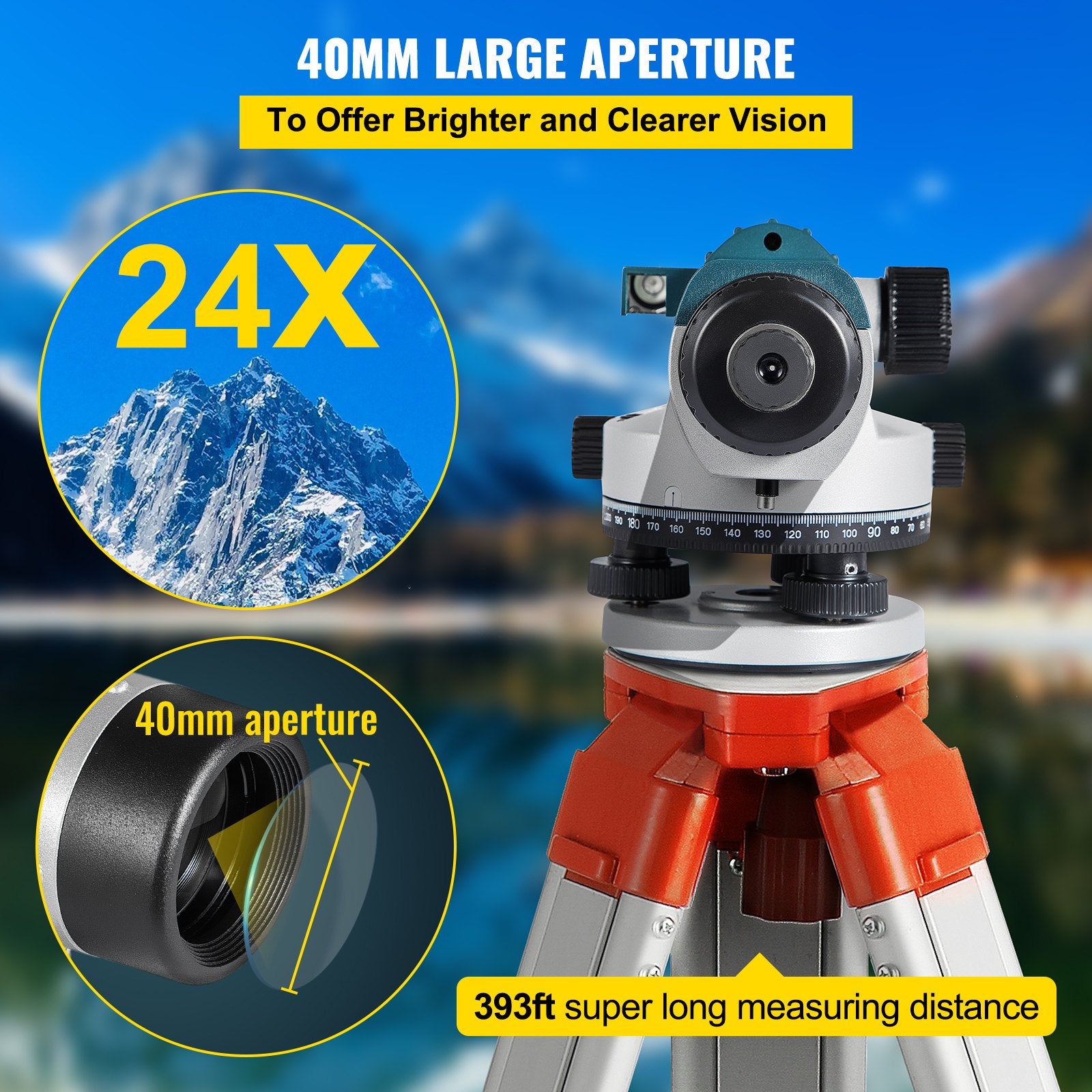

- 24X ＆ 40MM Lens: With a 24X magnification lens and 40 mm large aperture, this automatic optical level allows you to acquire a clear and bright image within the range of 393 ft. In addition, it provides excellent accuracy of 1/16-inch at 100 feet.

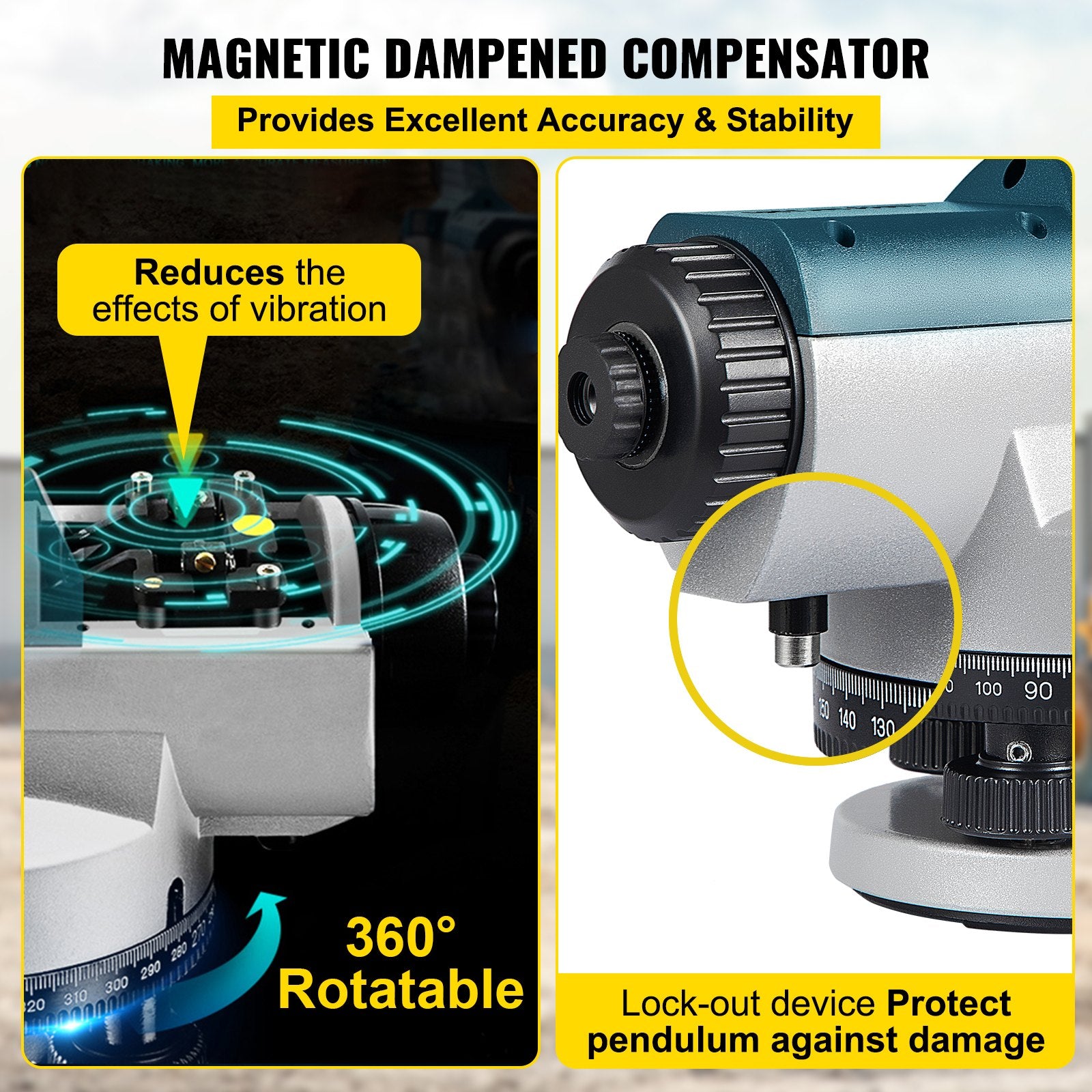

- Self-leveling Compensator w/ Lock: This optical level kit contains a magnetic-dampened compensator to reduce the effects of vibration, while the locking device protects the pendulum against damage during transport.

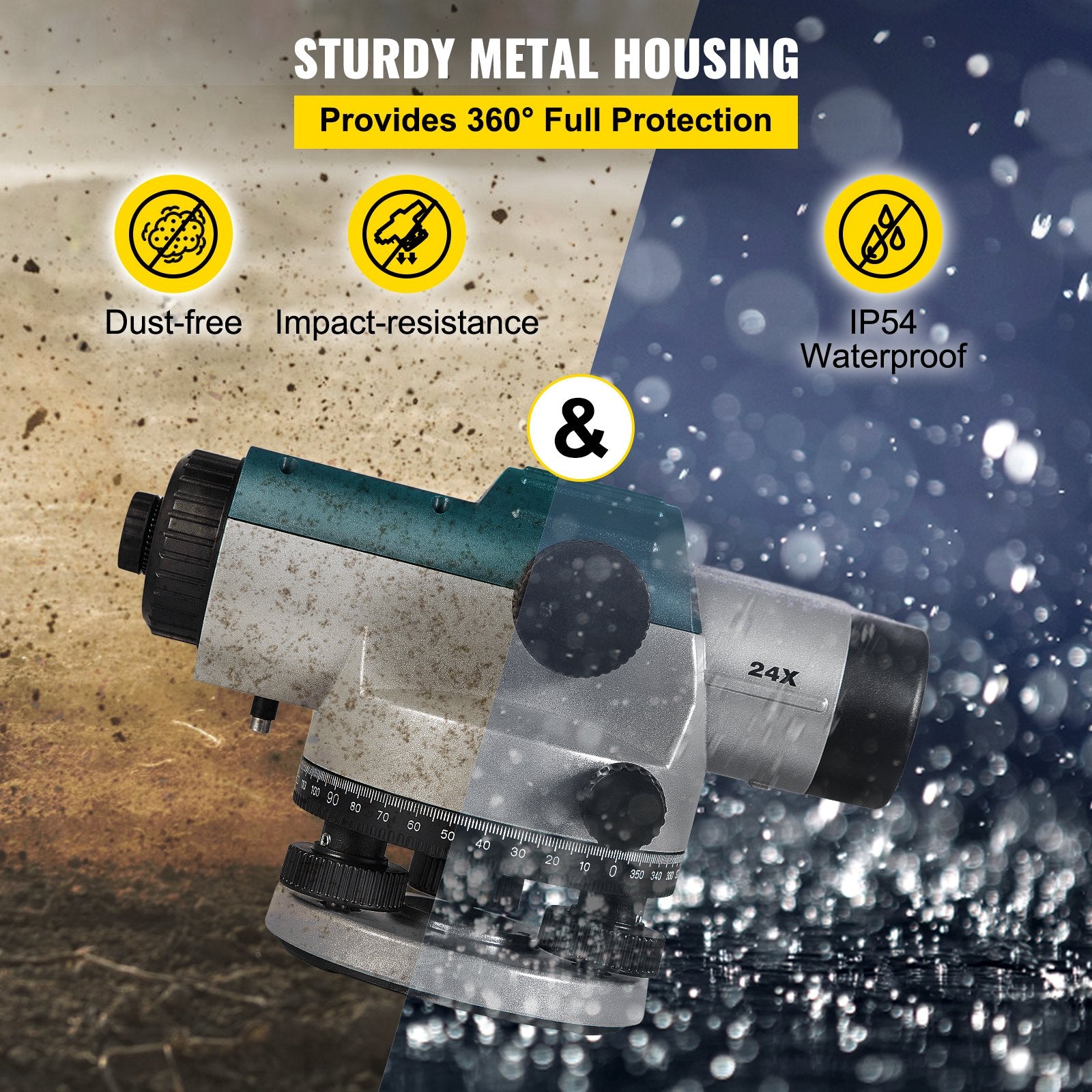

- Industrial-grade Design: Our builders' level is designed with industrial-grade metal housing. It is IP54 waterproof, dust-free, and features impact resistance. Therefore, the level is very stable and ensures the measurement is more accurate.
- Easy Set-up and Alignment: The circular bubble vial with a 90-degree prism makes sure the set-up and alignment are easy and fast; the 5/8" thread at the bottom can be fixed on a standard tripod. When using it, turn the focus handwheel until the target is clear. If there is a problem, it is possible that the focus is out of order, and the rack and gear detachment (rotating too much force, can also cause de-teeth).

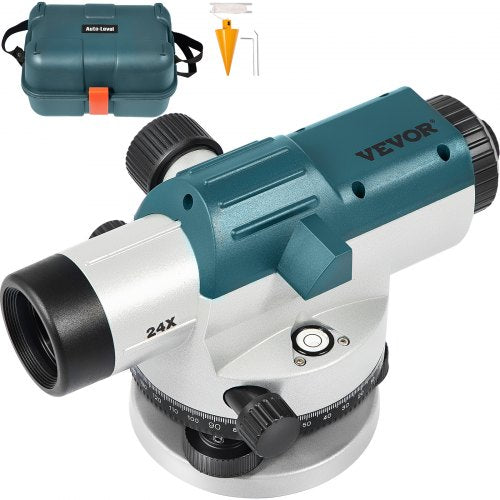

- With Sturdy Case: Our automatic optical level comes with a sturdy carrying case and a plumb line. It has been widely used for construction engineering surveys, deformation, and subsidence monitoring, mining survey, etc.
- Leveling Accuracy: 1/16" at 100Ft
- Measuring Range: 393 ft / 120 m
- IP Rating: IP54
- Model: 24X OPTICAL LEVEL
- Leveling Type: Magnetic dampened compensator
- Minimum Measuring Distance: 1 ft / 0.3 m
- Magnification: 24X
- Aperture: 40 mm
- Weight: 2.35KG / 5.2LBS
- Tripod Mount Thread: 5/8”
