Drill Guide, 30/ 45/ 90 Degree Angle 4 Sizes Portable Precision Drilling Guide Jig, for Drilling Angled or Horizontal Holes, Aluminum Alloy, for Deck Cable Railing Wood Post Stair Handrail

Drill Guide, 30/ 45/ 90 Degree Angle 4 Sizes Portable Precision Drilling Guide Jig, for Drilling Angled or Horizontal Holes, Aluminum Alloy, for Deck Cable Railing Wood Post Stair Handrail

545.70 SEK
545.70 SEK
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details
  • 3 Drilling Angles: This drill guide supports 30°, 45°, and 90° drilling angles, making it easy to handle both angled and horizontal drilling tasks. It is ideal for precise hole placement in a wide range of applications

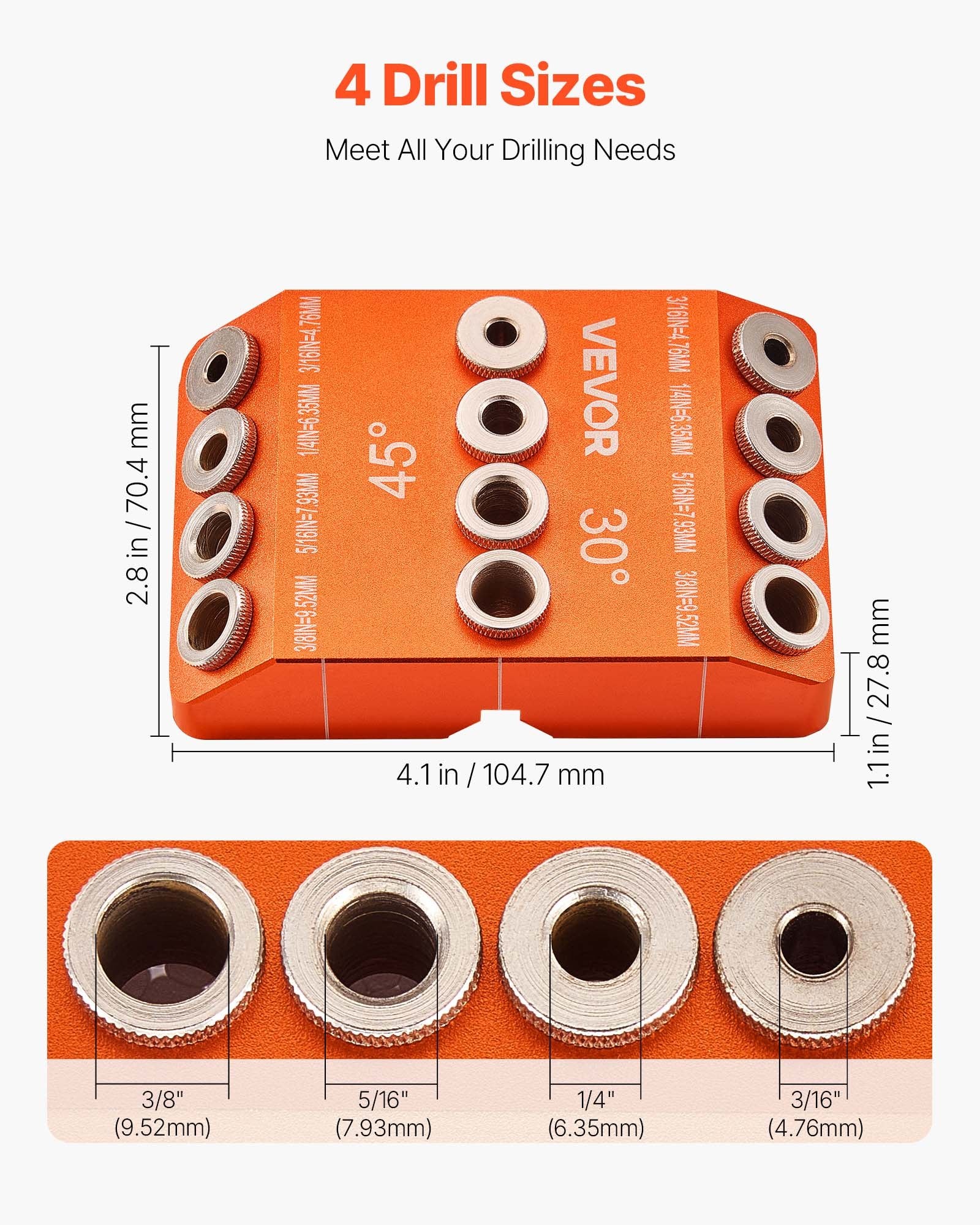

  • 4 Guide Sizes: The angle drill guide includes 4 different guide hole sizes: 3/8", 5/16", 1/4", and 3/16". It is compatible with various railing and fence installations, ensuring accurate holes and reduced errors for efficient work

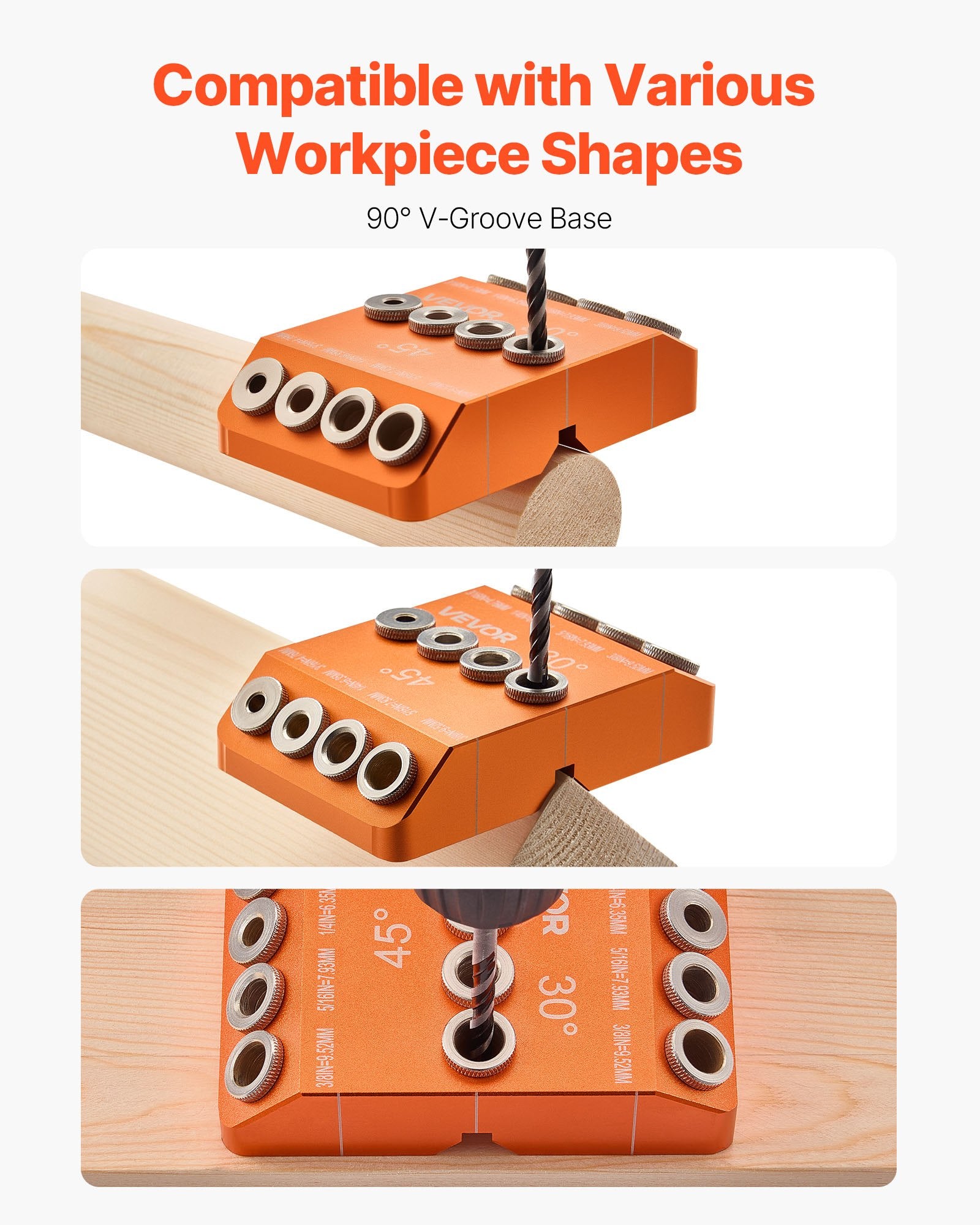

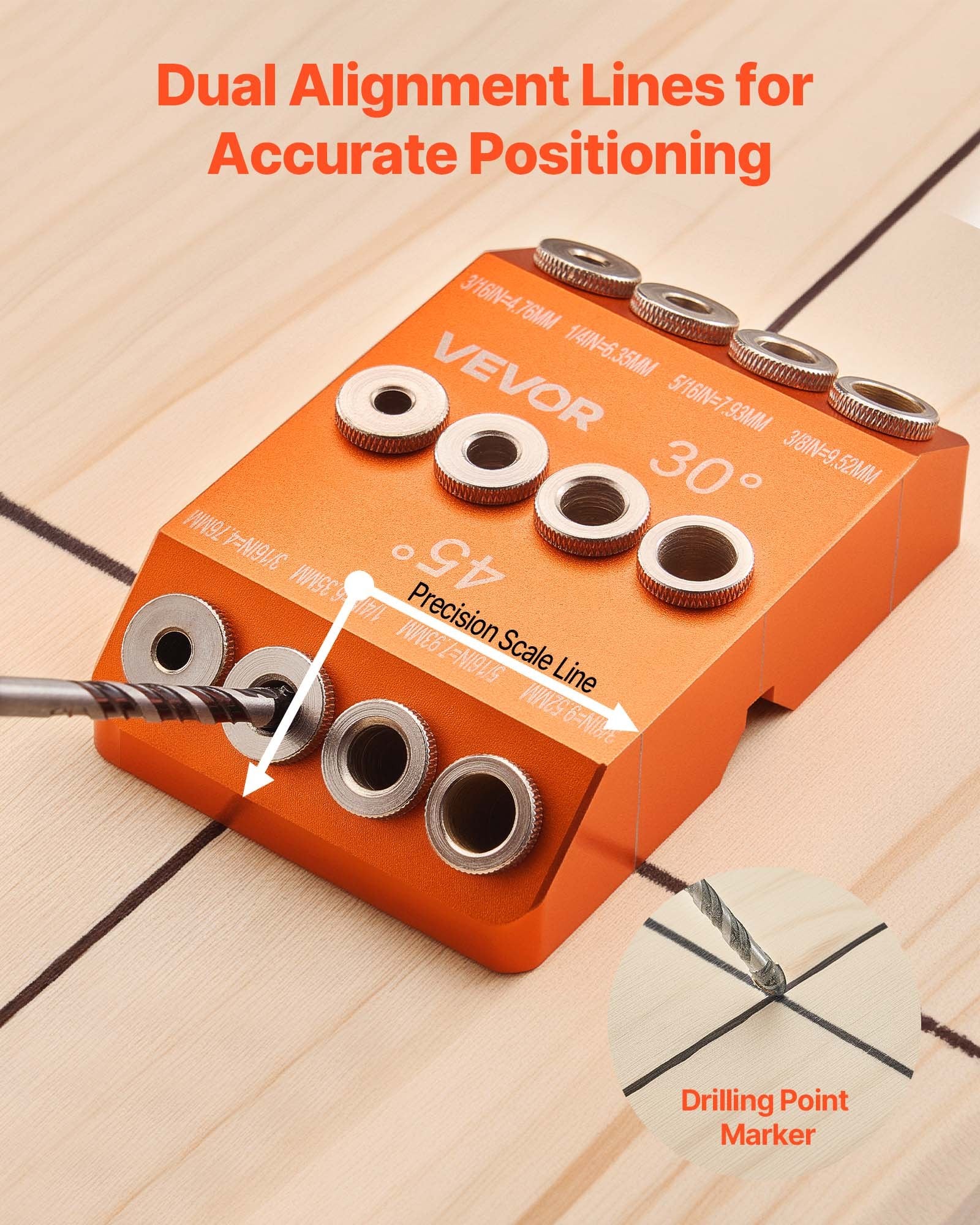

  • Easy to Use: Our drill guide jig features clear two-way alignment lines for precise positioning, with laser-etched scales that avoid wear. The 90° V-groove base provides stability, securely holding cylindrical, square, and other shaped workpieces
  • Premium Material: The portable drill guide is made from high-quality aluminum alloy for superior strength and durability, yet lightweight for easy portability, suitable for a variety of work environments

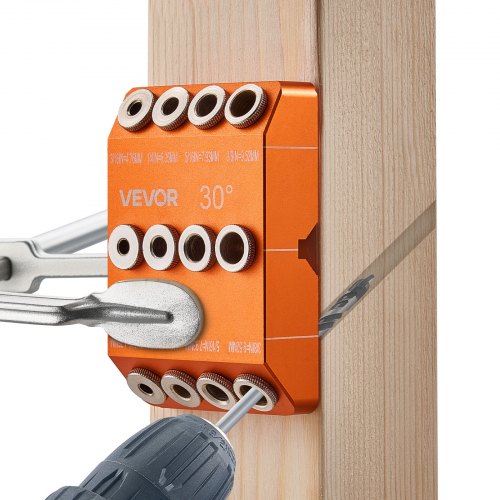

  • Versatile Applications: Our drilling guide is ideal for stair railings, fences, balustrades, and DIY. It provides quick, accurate results, making each task simpler and more efficient. It can be used with F-clamps or C-clamps to avoid guide movement

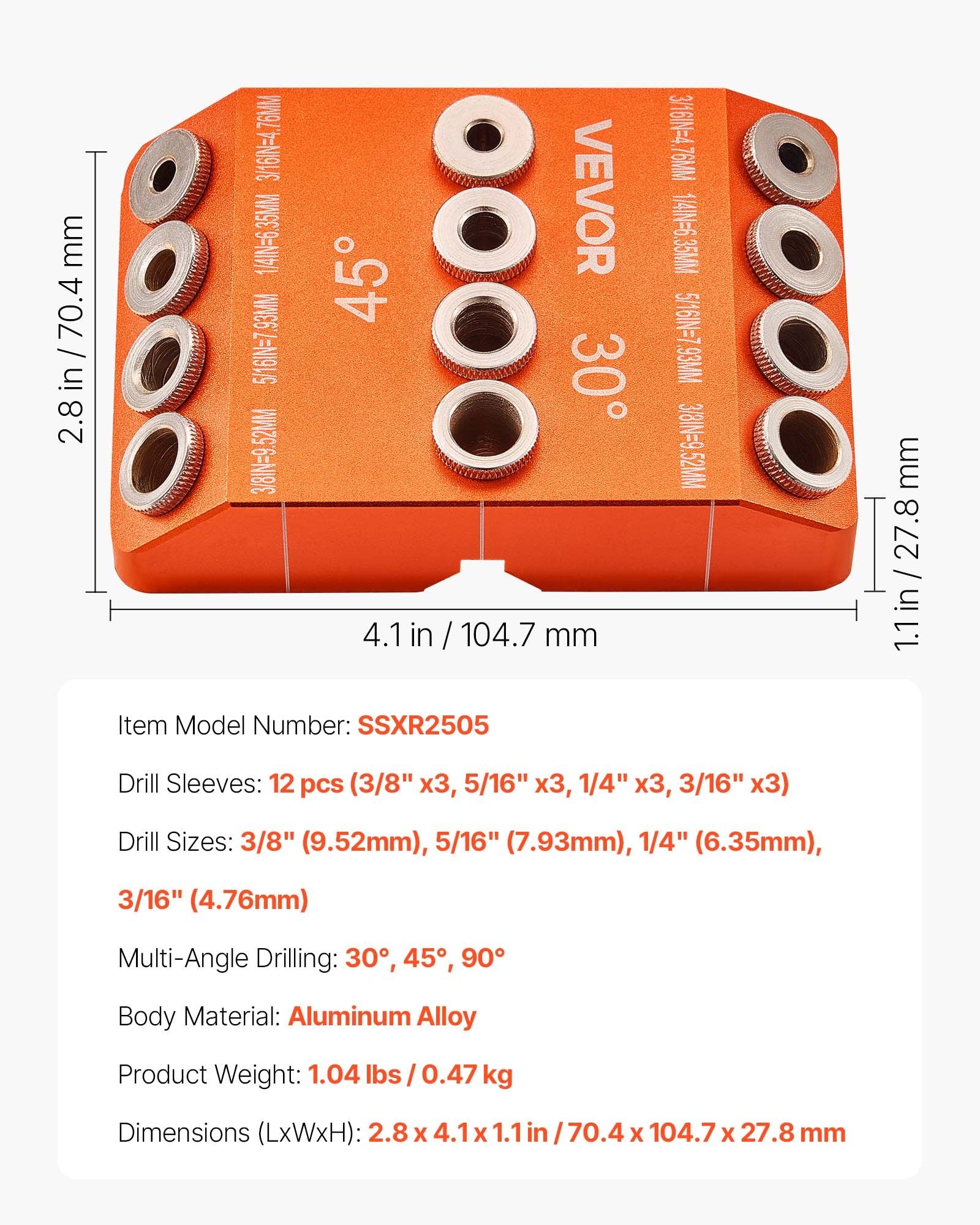

Product Specification
  • Drill Sleeves: 12 pcs (3/8" x3, 5/16" x3, 1/4" x3, 3/16" x3)
  • Body Material: Aluminum Alloy
  • Dimensions (LxWxH): 2.8 x 4.1 x 1.1 in / 70.4 x 104.7 x 27.8 mm
  • Item Model Number: SSXR2505
  • Product Weight: 1.04 lbs / 0.47 kg
  • Drill Sizes: 3/8" (9.52mm), 5/16" (7.93mm), 1/4" (6.35mm), 3/16" (4.76mm)
  • Multi-Angle Drilling: 30°, 45°, 90°
